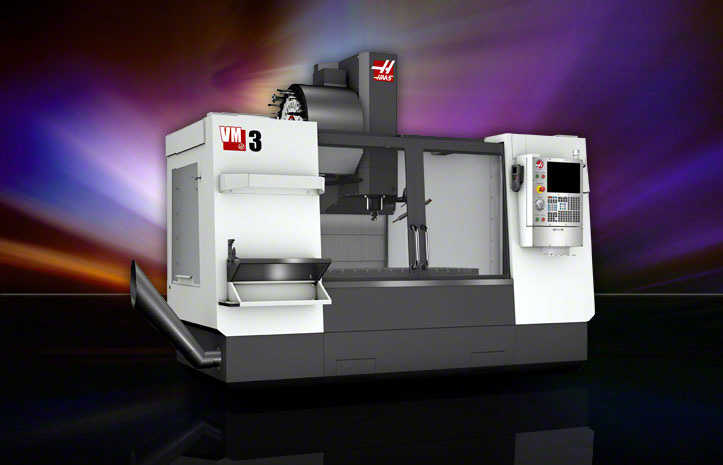

VM-3

Starting at $95,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VM-3 Product Overview

Vertical Mold Making Machine; 40" x 26" x 25" (1016 x 660 x 635 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, 24+1 side-mount tool changer, 710 ipm (18.0 m/min) rapids, automatic chip auger, remote jog handle, automatic air gun, high-speed machining, Ethernet interface, macros, coordinate rotation & scaling, programmable coolant nozzle, power failure detection module, 750 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

VM-3 Dimensions     VM-3 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VM-3 Specifications

print
VM-3
TRAVELS S.A.E. METRIC
X Axis 40 "  1016 mm
Y Axis 26 "  660 mm
Z Axis 25 "  635 mm
Spindle Nose to Table (~ max) 29 "  737 mm
Spindle Nose to Table (~ min) 4 "  102 mm
TABLE S.A.E. METRIC
Length 54 "  1372 mm
Width 25 "  635 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 3.937 "  100.00 mm
Number of Std T-Slots 13 in Y, 6 in X   13 in Y, 6 in X
Max Weight on Table (evenly distributed) 4000 lb  1814 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 12,000  rpm  12,000 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Taper CT or BT 40   CT or BT 40
FEEDRATES S.A.E. METRIC
Rapids on X 710 in/min  18.0 m/min
Rapids on Y 710 in/min  18.0 m/min
Rapids on Z 710 in/min  18.0 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 4100 lb  18238 N
Max Thrust Y 4100 lb  18238 N
Max Thrust Z 4100 lb  18238 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 24+1   24+1
Max Tool Diameter (adjacent empty) 5.0 "  127 mm
Max Tool Diameter (full) 3.0 "  76 mm
Max Tool Length (from gage line) 13 "  330 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.8  sec  2.8 sec
Chip-to-Chip (avg) 3.6  sec  3.6 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
