TM-3P

Starting at $44,995.00

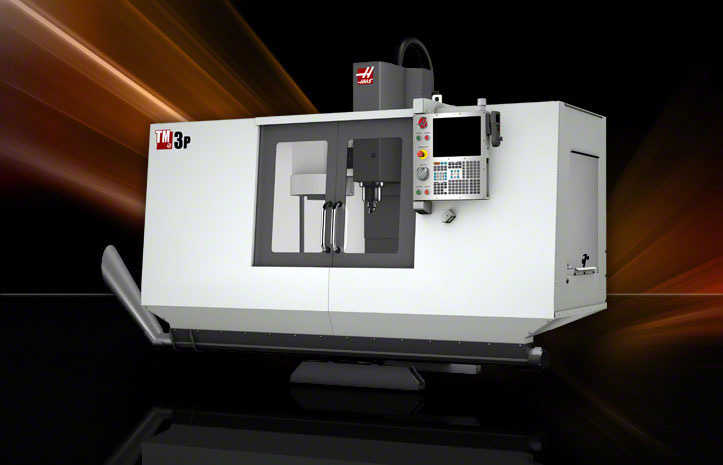

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

TM-3P Product Overview

Toolroom Mill with Tool Changer; 40" x 20" x 16" (1016 x 508 x 406 mm), 40 taper, 7.5 hp (5.6 kW) vector drive, 6000 rpm, full enclosure, 10-station automatic tool changer, Intuitive Programming System, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port and 15-gallon (57 liter) flood coolant system.

TM-3P Dimensions TM-3P Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

TM-3P Specifications

TRAVELS	S.A.E.	METRIC
TM-3P
X Axis	40 "	1016 mm
Y Axis	20 "	508 mm
Z Axis	16 "	406 mm
Spindle Nose to Table (~ max)	20 "	508 mm
Spindle Nose to Table (~ min)	4 "	102 mm
TABLE	S.A.E.	METRIC
Length	57.75 "	1467 mm
Width	14.5 "	368 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	4.92 "	125.0 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	1000 lb	454 kg
SPINDLE	S.A.E.	METRIC
Max Rating	7.5 hp	5.6 kW
Max Speed	6000 rpm	6000 rpm
Max Torque	33 ft-lb @ 1200 rpm	45 Nm @ 1200 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Taper	CT or BT 40	CT or BT 40
Bearing Lubrication	Grease packed	Grease packed
Cooling	Air Cooled	Air Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	400 in/min	10.2 m/min
Rapids on Y	400 in/min	10.2 m/min
Rapids on Z	400 in/min	10.2 m/min
Max Cutting	400 in/min	10.2 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2000 lb	8896 N
Max Thrust Y	2000 lb	8896 N
Max Thrust Z	2000 lb	8896 N
TOOL CHANGER	S.A.E.	METRIC
Type	Carousel	Carousel
Capacity	10	10
Max Tool Diameter (full)	3.5 "	89 mm
Max Tool Weight	12 lb	5.4 kg
Tool-to-Tool (avg)	5.7 sec	5.7 sec
Chip-to-Chip (avg)	6.5 sec	6.5 sec
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
