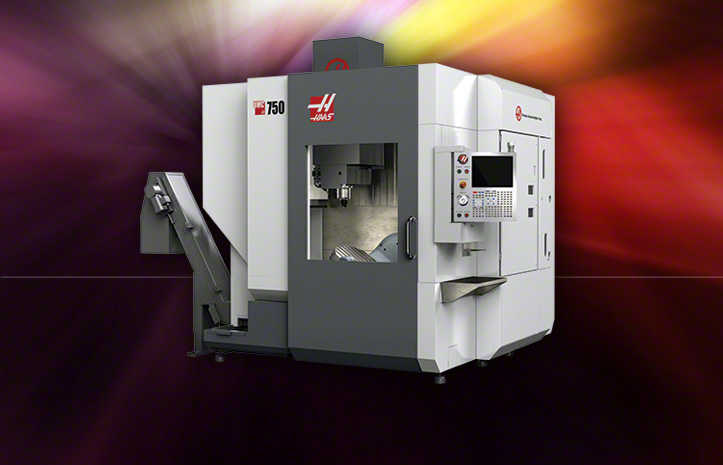

UMC-750

Starting at $149,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

UMC-750 Product Overview

5-Axis Vertical Machining Center; 30" x 20" x 20" (762 x 508 x 508 mm), with 630 x 500 mm integrated 2-axis trunnion rotary table, 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive, 40+1 side mount tool changer, 1000 ipm (25.4 m/min) rapids, spindle orientation, macros, coordinate rotation & scaling, Wireless Intuitive Probing System, second home button, color remote jog handle, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 75-gallon (284 liter) flood coolant system.

UMC-750 Dimensions     UMC-750 Datasheet Shipping Dimensions Electrical Requirements

UMC-750 Specifications

print
UMC-750
TRAVELS S.A.E. METRIC
X Axis 30 "  762 mm
Y Axis 20 "  508 mm
Z Axis 20 "  508 mm
B Axis Tilt +110° to -35°   +110° to -35°
C Axis Rotation 360 °  360 °
Spindle Nose to Table (~ max) 24 "  610 mm
Spindle Nose to Table (~ min) 4 "  102 mm
PLATTER S.A.E. METRIC
Platter Length 24.8 "  630 mm
Platter Width 19.7 "  500 mm
Max Weight on Platter 660 lb  300 kg
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 2.48 "  63 mm
Number of Std T-Slots 7   7
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 8100 rpm  8100 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Air   Air
SPINDLE (OPT) S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 12000 rpm  12000 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Air   Air
FEEDRATES S.A.E. METRIC
Rapids on X 1000 in/min  25.4 m/min
Rapids on Y 1000 in/min  25.4 m/min
Rapids on Z 1000 in/min  25.4 m/min
Max Cutting 650 in/min  16.5 m/min
FEEDRATES (ROTARY) S.A.E. METRIC
Rapids on B 50 °/sec  50 °/sec
Rapids on C 50 °/sec  50 °/sec
Max Cutting (Rotary) 50 °/sec  50 °/sec
AXIS MOTORS S.A.E. METRIC
Max Thrust X 2750 lb  12233 N
Max Thrust Y 2750 lb  12233 N
Max Thrust Z 3400 lb  15124 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 40+1   40+1
Max Tool Diameter (adjacent empty) 5 "  127 mm
Max Tool Diameter (full) 3 "  76 mm
Max Tool Length (from gage line) 12 "  305 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.8 sec  2.8 sec
Chip-to-Chip (avg) 3.6 sec  3.6 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 75 gal  284 L
