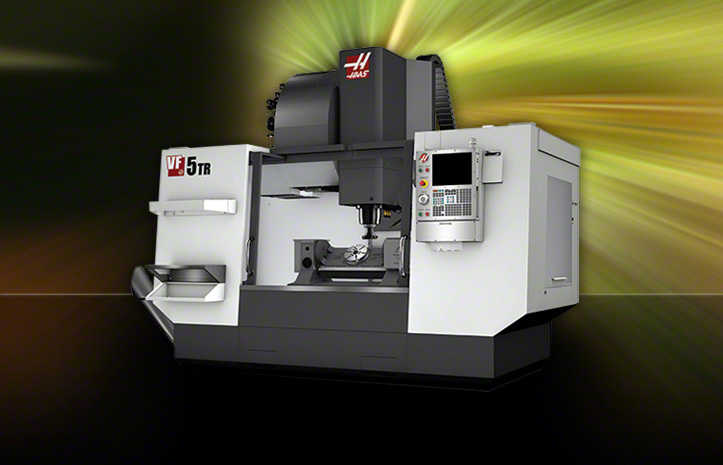

VF-5/50TR.jpg
360 Degree Views

VF-5/50TR

Starting at $169,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-5/50TR Product Overview

5-Axis Vertical Machining Center, 50" x 26" x 25" (1270 x 660 x 635 mm), with removable 8.27" (210 mm) 2-axis trunnion rotary table, 50-taper geared-head, 30 hp (22.4 kW) vector drive, 30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, automatic chip auger, programmable coolant nozzle, 750 MB program memory, coordinate rotation & scaling, color remote jog handle, macros, high-speed machining, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

VF-5/50TR Dimensions     VF-5/50TR Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-5/50TR Specifications

print
VF-5/50TR
TRAVELS S.A.E. METRIC
X Axis 50 "  1270 mm
Y Axis 26 "  660 mm
Z Axis 25 "  635 mm
A Axis (tilt) ±120 °  ±120 °
B Axis (rot) 360 °  360 °
Spindle Nose to Platter (~ max) 20 "  508 mm
Spindle Nose to Platter (~ min) -5 "  -127 mm
Spindle Nose to Table (~ max) 32 "  813 mm
Spindle Nose to Table (~ min) 7 "  178 mm
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 7500 rpm  7500 rpm
Max Torque 450 ft-lb @ 500 rpm  610 Nm @ 500 rpm
Drive System 2-Speed Geared Head   2-Speed Geared Head
Taper CT or BT 50   CT or BT 50
FEEDRATES S.A.E. METRIC
Rapids on X 710 in/min  18.0 m/min
Rapids on Y 710 in/min  18.0 m/min
Rapids on Z 710 in/min  18.0 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 4100 lb  18238 N
Max Thrust Z 5600 lb  24910 N
TRUNNION S.A.E. METRIC
Platter Diameter 8.3 "  210 mm
Max Weight on Platter 200 lb  90.7 kg
Max Part Swing (reduced at tilt angles > ± 90°) 23.5  "  596.9 mm
T-Slot Width 0.625 "  15.88 mm
T-Slot Quantity 6   6
Pilot Bore Dia 2.000 (+0.0005, -0.0) "  50.80 (+ 0.013, –0.0) mm
Pilot Bore Depth 4.90 "  124.5 mm
Rapids on A 3600 °/min  3600 °/min
Rapids on B 3600 °/min  3600 °/min
Max Cutting A 2000 °/min  2000 °/min
Max Cutting B 2000 °/min  2000 °/min
TOOL CHANGER S.A.E. METRIC
Type SMTC    SMTC
Capacity 30+1   30+1
Max Tool Diameter (adjacent empty) 7 "  178 mm
Max Tool Diameter (full) 4 "  102 mm
Max Tool Length (from gage line) 16 "  406 mm
Max Tool Weight 30 lb  13.6 kg
Tool-to-Tool (avg) 4.2 sec  4.2 sec
Chip-to-Chip (avg) 6.3 sec  6.3 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 95 gal  360 L
