CNC Verticals: 30 - 40 Inch X-Axis

360 Degree Views

VM-2

Starting at $82,995.00

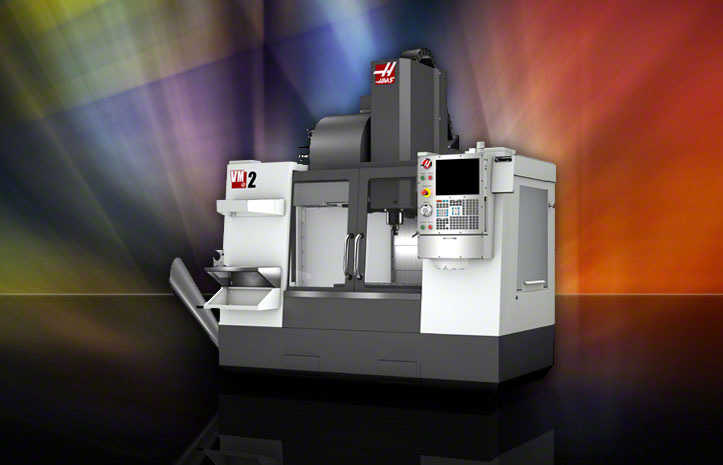

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VM-2 Product Overview

Vertical Mold Making Machine; 30" X 20" X 20" (762 x 508 x 508 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, 24+1 side-mount tool changer, 710 ipm (18.0 m/min) rapids, automatic chip auger, remote jog handle, automatic air gun, high-speed machining, Ethernet interface, macros, coordinate rotation & scaling, programmable coolant nozzle, power failure detection module, 750 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

VM-2 Dimensions     VM-2 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VM-2 Specifications

print
VM-2
TRAVELS S.A.E. METRIC
X Axis 30 "  762 mm
Y Axis 20 "  508 mm
Z Axis 20 "  508 mm
Spindle Nose to Table (~ max) 24 "  610 mm
Spindle Nose to Table (~ min) 4 "  102 mm
TABLE S.A.E. METRIC
Length 36 "  914 mm
Width 18 "  457 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.375 "  111 mm
Number of Std T-Slots 7 in Y, 3 in X   7 in Y, 3 in X
Max Weight on Table (evenly distributed) 3000 lb  1361 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 12000  rpm  12000 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Taper CT or BT 40   CT or BT 40
FEEDRATES S.A.E. METRIC
Rapids on X 710 in/min  18.0 m/min
Rapids on Y 710 in/min  18.0 m/min
Rapids on Z 710 in/min  18.0 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 3400 lb  15124 N
Max Thrust Z 5600 lb  24910 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 24+1   24+1
Max Tool Diameter (adjacent empty) 5.0 "  127 mm
Max Tool Diameter (full) 3.0 "  76 mm
Max Tool Length (from gage line) 11 "  279 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.8  sec  2.8 sec
Chip-to-Chip (avg) 3.6  sec  3.6 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
