CNC Verticals: 30 - 40 Inch X-Axis

360 Degree Views

VF-2TR

Starting at $112,995.00

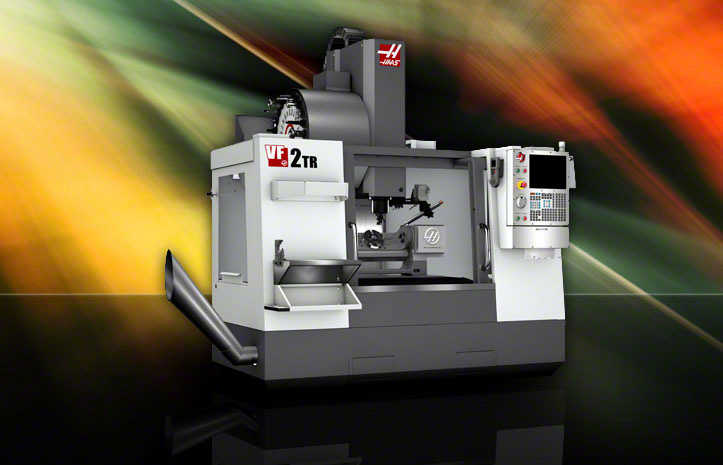

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-2TR Product Overview

5-Axis Vertical Machining Center; 30" x 16" x 20" (762 x 406 x 508 mm), with removable 6.3" (160 mm) 2-axis trunnion rotary table, 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive, 24+1 side-mount tool changer, 1000 ipm (25.4 m/min) rapids, automatic chip auger, programmable coolant nozzle, 750 MB program memory, coordinate rotation & scaling, color remote jog handle, macros, high-speed machining, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

VF-2TR Dimensions     VF-2TR Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-2TR Specifications

print
VF-2TR
TRAVELS S.A.E. METRIC
X Axis 30 "  762 mm
Y Axis 16 "  406 mm
Z Axis 20 "  508 mm
Spindle Nose to Platter (~ max) 14.62 "  371 mm
Spindle Nose to Platter (~ min) -5.38 "  -137 mm
Spindle Nose to Table (~ max) 24 "  610 mm
Spindle Nose to Table (~ min) 4 "  102 mm
TABLE S.A.E. METRIC
Length 36 "  914 mm
Width 14 "  356 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.92 "  125.0 mm
Number of Std T-Slots 3   3
Max Weight on Table (evenly distributed) 3000 lb  1361 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 8100 rpm  8100 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Max Torque w/opt Gearbox 250 ft-lb @ 450 rpm  339 Nm @ 450 rpm
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 1000 in/min  25.4 m/min
Rapids on Y 1000 in/min  25.4 m/min
Rapids on Z 1000 in/min  25.4 m/min
Max Cutting 650 in/min  16.5 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 2550 lb  11343 N
Max Thrust Y 2550 lb  11343 N
Max Thrust Z 4200 lb  18683 N
TRUNNION S.A.E. METRIC
Platter Diameter 6.3 "  160 mm
Max Weight on Platter 80 lb  36.3 kg
Max Part Swing (reduced at tilt angles > ± 90°) 17.5 "  445 mm
T-Slot Width 0.625 "  15.88 mm
Number of Std T-Slots 6   6
Pilot Bore Dia 1.500 (+0.0005, -0.0) "  38.10 (+ 0.013, –0.0) mm
Pilot Bore Depth 4.63 "  117.6 mm
Rapids on A 4800 °/min  4800 °/min
Rapids on B 4800 °/min  4800 °/min
Max Cutting A 2000 °/min  2000 °/min
Max Cutting B 2000 °/min  2000 °/min
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 24+1   24+1
Max Tool Diameter (adjacent empty) 5.0 "  127 mm
Max Tool Diameter (full) 3.0 "  76 mm
Max Tool Length (from gage line) 11 "  279 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.8 sec  2.8 sec
Chip-to-Chip (avg) 3.6 sec  3.6 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
