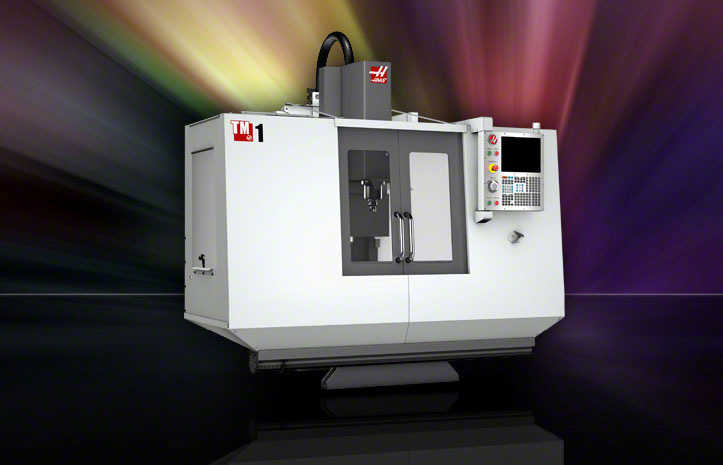

TM-1

Starting at $28,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

TM-1 Product Overview

Toolroom Mill; 30" x 12" x16" (762 x 305 x 406 mm), 40 taper, 7.5 hp (5.6 kW) vector drive, 4000 rpm, full enclosure, Intuitive Programming System, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port.

TM-1 Dimensions     TM-1 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

TM-1 Specifications

print
TM-1
TRAVELS S.A.E. METRIC
X Axis 30 "  762 mm
Y Axis 12 "  305 mm
Z Axis 16 "  406 mm
Spindle Nose to Table (~ max) 20 "  508 mm
Spindle Nose to Table (~ min) 4 "  102 mm
TABLE S.A.E. METRIC
Length 47.75 "  1213 mm
Width 10.5 "  267 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.00 "  101.6 mm
Number of Std T-Slots 3   3
Max Weight on Table (evenly distributed) 1000 lb  454 kg
SPINDLE S.A.E. METRIC
Max Rating 7.5 hp  5.6 kW
Max Speed 4000 rpm  4000 rpm
Max Torque 33 ft-lb @ 1200 rpm  45 Nm @ 1200 rpm
Drive System Direct Speed Belt Drive   Direct Speed Belt Drive
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Grease packed   Grease packed
Cooling Air Cooled   Air Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 200 in/min  5.1 m/min
Rapids on Y 200 in/min  5.1 m/min
Rapids on Z 200 in/min  5.1 m/min
Max Cutting 200 in/min  5.1 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 2000 lb  8896 N
Max Thrust Y 2000 lb  8896 N
Max Thrust Z 2000 lb  8896 N
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
