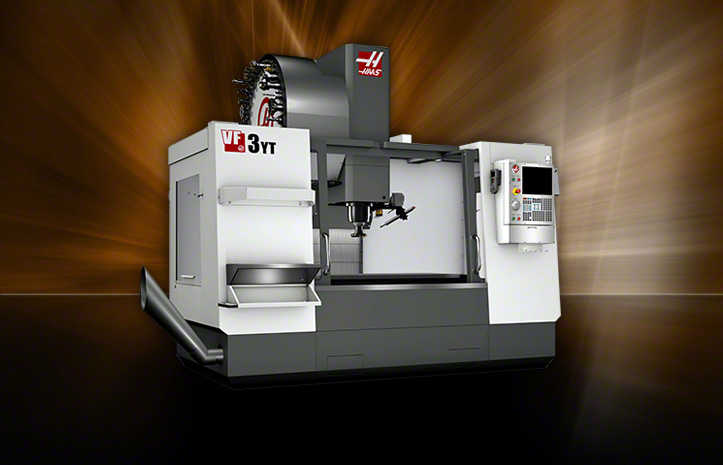

VF-3YT/50

Starting at $99,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-3YT/50 Product Overview

Vertical Machining Center; 40" X 26" X 25" (1016 x 660 x 635 mm), 50- taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side- mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chip auger, power failure detection module, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

VF-3YT/50 Dimensions     VF-3YT/50 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-3YT/50 Specifications

print
VF-3YT/50
TRAVELS S.A.E. METRIC
X Axis 40 "  1016 mm
Y Axis 26 "  660 mm
Z Axis 25 "  635 mm
Spindle Nose to Table (~ max) 32.9 "  836 mm
Spindle Nose to Table (~ min) 7.9 "  200 mm
TABLE S.A.E. METRIC
Length 52 "  1321 mm
Width 23 "  584 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 3.15 "  80.0 mm
Number of Std T-Slots 7   7
Max Weight on Table (evenly distributed) 4000 lb  1814 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 7500 rpm  7500 rpm
Max Torque 450 ft-lb @ 500 rpm  610 Nm @ 500 rpm
Drive System 2-Speed Geared Head   2-Speed Geared Head
Taper CT or BT 50   CT or BT 50
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 710 in/min  18.0 m/min
Rapids on Y 710 in/min  18.0 m/min
Rapids on Z 710 in/min  18.0 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 4100 lb  18238 N
Max Thrust Z 5600 lb  24910 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 30+1   30+1
Max Tool Diameter (adjacent empty) 7 "  178 mm
Max Tool Diameter (full) 4 "  102 mm
Max Tool Length (from gage line) 16 "  406 mm
Max Tool Weight 30 lb  13.6 kg
Tool-to-Tool (avg) 4.2 sec  4.2 sec
Chip-to-Chip (avg) 6.3 sec  6.3 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
