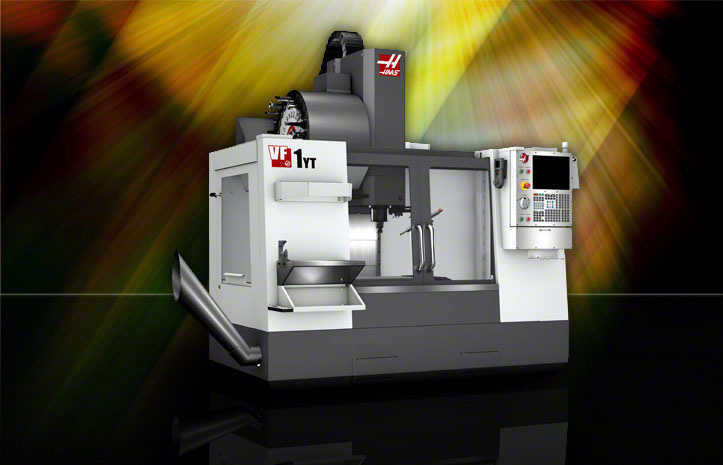

VF-1YT Product Overview

Vertical Machining Center; 20" x 20" x 20" (508 x 508 x 508 mm), 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive, 20-station carousel tool changer, 1000 ipm (25.4 m/min) rapids, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

VF-1YT Dimensions Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-1YT Specifications

print
VF-1YT
TRAVELS S.A.E. METRIC
X Axis 20 "  508 mm
Y Axis 20 "  508 mm
Z Axis 20 "  508 mm
Spindle Nose to Table (~ max) 24 "  610 mm
Spindle Nose to Table (~ min) 4 "  102 mm
TABLE S.A.E. METRIC
Length 26 "  660 mm
Width 18 "  457 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.92 "  125.0 mm
Number of Std T-Slots 3   3
Max Weight on Table (evenly distributed) 3000 lb  1361 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 8100 rpm  8100 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Direct Speed Belt Drive   Direct Speed Belt Drive
Max Torque w/opt Gearbox 250 ft-lb @450 rpm  339 Nm @ 450 rpm
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 1000 in/min  25.4 m/min
Rapids on Y 1000 in/min  25.4 m/min
Rapids on Z 1000 in/min  25.4 m/min
Max Cutting 650 in/min  16.5 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 2550 lb  11343 N
Max Thrust Y 2550 lb  11343 N
Max Thrust Z 4200 lb  18683 N
TOOL CHANGER S.A.E. METRIC
Type Carousel (SMTC Optional)    Carousel (SMTC Optional)
Capacity 20   20
Max Tool Diameter (full) 3.5 "  89 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 4.2 sec  4.2 sec
Chip-to-Chip (avg) 4.5 sec  4.5 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
