CNC Verticals: 8 - 20 Inch X-Axis


OM-1A

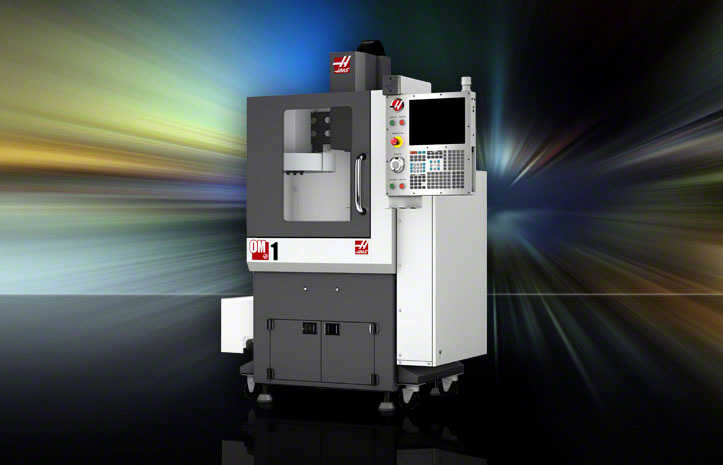

* Machine shown with optional equipment. Actual product appearance may differ.



OM-1A Product Overview

Office Mill; 8" x 8" x 12" (203 x 203 x 305 mm), ISO 20 taper, 5 hp (3.7 kW) vector drive, 30,000 rpm, 20-station automatic tool changer, coolant pump, high-speed machining, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port. 208-250VAC 50-60Hz, single-phase power only, with NEMA L6-20P plug.

OM-1A Dimensions     OM-1A Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

OM-1A Specifications

print
OM-1A
TRAVELS S.A.E. METRIC
X Axis 8  "  203 mm
Y Axis 8  "  203 mm
Z Axis 12 "  305 mm
Spindle Nose to Table (~ max) 15.25 "  387.4 mm
Spindle Nose to Table (~ min) 3.25 "  82.6 mm
TABLE S.A.E. METRIC
Length 20  "  508 mm
Width 10  "  254 mm
T-Slot Width 0.438  "  11.13 mm
T-Slot Center Distance 3.375  "  85.73 mm
Max Weight on Table (evenly distributed) 150 lb  68 kg
SPINDLE S.A.E. METRIC
Max Rating 5 hp  3.7 kW
Max Speed 30000 rpm  30000 rpm
Max Torque 5 ft-lb @ 3000 rpm  6.8 Nm @ 3000 rpm
Drive System Direct Speed Belt Drive   Direct Speed Belt Drive
Taper ISO/20   ISO/20
Cooling Air and Coolant Recirculation   Air and Coolant Recirculation
SPINDLE (OPT) S.A.E. METRIC
Max Rating 5 hp  3.7 kW
Max Speed 50000 rpm  50000 rpm
Max Torque 3.7 ft-lb @ 3700 rpm  5.0 Nm @ 3700 rpm
Taper ISO/20   ISO/20
FEEDRATES S.A.E. METRIC
Rapids on X 757 in/min  19.2 m/min
Rapids on Y 757 in/min  19.2 m/min
Rapids on Z 757 in/min  19.2 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 1149 lb  5111 N
Max Thrust Y 1149 lb  5111 N
Max Thrust Z 1149 lb  5111 N
TOOL CHANGER S.A.E. METRIC
Type Carousel   Carousel
Capacity 20   20
Max Tool Diameter (full) 2.3 "  58 mm
Max Tool Weight 5 lb  2.3 kg
Tool-to-Tool (avg) 3.2 sec  3.2 sec
GENERAL S.A.E. METRIC
Air Required 1 scfm, 40-70 psi  28 L/min, 2.8-4.8 bar
Coolant Capacity 13 gal  49 L
