MINIMILL2

* Machine shown with optional equipment. Actual product appearance may differ.

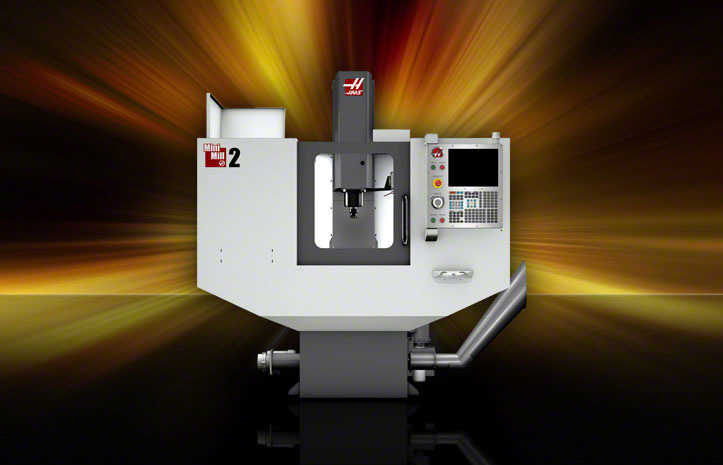

MINIMILL2 Product Overview

Vertical Machining Center; 20" x 16" x 14" (508 x 406 x 356 mm), 40 taper, 7.5 hp (5.6 kW) vector drive, 6000 rpm, 10-station automatic tool changer, 1 MB program memory, 15" color LCD monitor, memory lock keyswitch, USB port and work light.

MINIMILL2 Dimensions MINIMILL2 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

MINIMILL2 Specifications

TRAVELS	S.A.E.	METRIC
MINIMILL2
X Axis	20 "	508 mm
Y Axis	16 "	406 mm
Z Axis	14 "	356 mm
Spindle Nose to Table (~ max)	18.0 "	457 mm
Spindle Nose to Table (~ min)	4.0 "	102 mm
TABLE	S.A.E.	METRIC
Length	40 "	1016 mm
Width	14 "	356 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	4.9 "	125 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	500 lb	227 kg
SPINDLE	S.A.E.	METRIC
Max Rating	7.5 hp	5.6 kW
Max Speed	6000 rpm	6000 rpm
Max Torque	33 ft-lb @ 1200 rpm	45 Nm @ 1200 rpm
Drive System	Direct Speed Belt Drive	Direct Speed Belt Drive
Taper	CT/40 or BT/40	CT/40 or BT/40
Bearing Lubrication	Grease Packed	Grease Packed
Cooling	Air Cooled	Air Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	600 in/min	15.2 m/min
Rapids on Y	600 in/min	15.2 m/min
Rapids on Z	600 in/min	15.2 m/min
Max Cutting	500 in/min	12.7 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2000 lb	8896 N
Max Thrust Y	2000 lb	8896 N
Max Thrust Z	2000 lb	8896 N
TOOL CHANGER	S.A.E.	METRIC
Type	Carousel	Carousel
Capacity	10	10
Max Tool Diameter (full)	3.5 "	89 mm
Max Tool Weight	12 lb	5.4 kg
Tool-to-Tool (avg)	3.6 sec	3.6 sec
Chip-to-Chip (avg)	5.0 sec	5.0 sec
TOOL CHANGER (OPT)	S.A.E.	METRIC
Type	Carousel/SMTC	Carousel/SMTC
Capacity	20/24+1	20/24+1
Tool-to-Tool (avg)	3.6/2.8 sec	3.6/2.8 sec
Chip-to-Chip (avg)	5.0/3.6 sec	5.0/3.6 sec
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	24 gal	91 L
