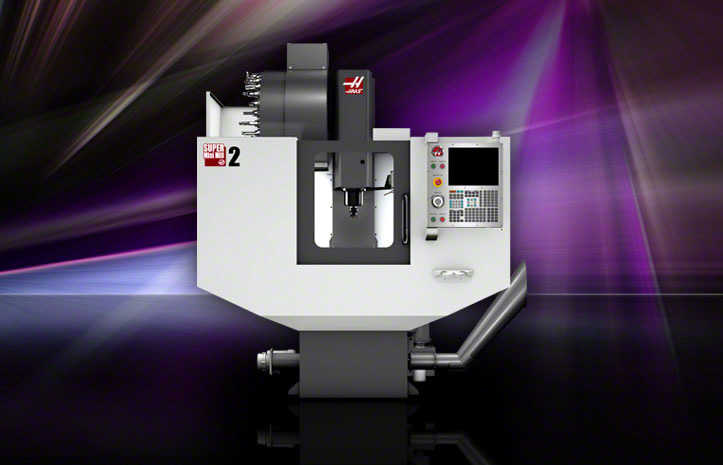

SMINIMILL2

* Machine shown with optional equipment. Actual product appearance may differ.

SMINIMILL2 Product Overview

Vertical Machining Center; 20" x 16" x 14" (508 x 406 x 356 mm), 40 taper, 15 hp (11.2 kW) vector drive, 10,000 rpm, 1200 ipm (30.5 m/min) rapids, high-speed 10-station automatic tool changer, coolant pump, 1 MB program memory, 15" color LCD monitor, memory lock keyswitch, USB port, rigid tapping and work light. Three-phase power only.

SMINIMILL2 Dimensions SMINIMILL2 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

SMINIMILL2 Specifications

TRAVELS	S.A.E.	METRIC
SMINIMILL2
X Axis	20 "	508 mm
Y Axis	16 "	406 mm
Z Axis	14 "	356 mm
Spindle Nose to Table (~ max)	18.0 "	457 mm
Spindle Nose to Table (~ min)	4.0 "	102 mm
TABLE	S.A.E.	METRIC
Length	40 "	1016 mm
Width	14 "	356 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	4.9 "	125 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	500 lb	227 kg
SPINDLE	S.A.E.	METRIC
Max Rating	15 hp	11.2 kW
Max Speed	10,000 rpm	10 000 rpm
Max Torque	17 ft-lb @ 4600 rpm	23 Nm @ 4600 rpm
Drive System	Direct Speed Belt Drive	Direct Speed Belt Drive
Taper	CT/40 or BT/40	CT/40 or BT/40
Bearing Lubrication	Air/Oil Injection	Air/Oil Injection
Cooling	Air Cooled	Air Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	1200 in/min	30.5 m/min
Rapids on Y	1200 in/min	30.5 m/min
Rapids on Z	1200 in/min	30.5 m/min
Max Cutting	833 in/min	21.2 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2000 lb	8896 N
Max Thrust Y	2000 lb	8896 N
Max Thrust Z	2000 lb	8896 N
TOOL CHANGER	S.A.E.	METRIC
Type	Carousel	Carousel
Capacity	10	10
Max Tool Diameter (full)	3.5 "	89 mm
Max Tool Weight	12 lb	5.4 kg
Tool-to-Tool (avg)	3.0 sec	3.0 sec
Chip-to-Chip (avg)	3.8 sec	3.8 sec
TOOL CHANGER (OPT)	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	24+1	24+1
Tool-to-Tool (avg)	1.6 sec	1.6 sec
Chip-to-Chip (avg)	2.2 sec	2.2 sec
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	24 gal	91 L
