OM-2A

* Machine shown with optional equipment. Actual product appearance may differ.

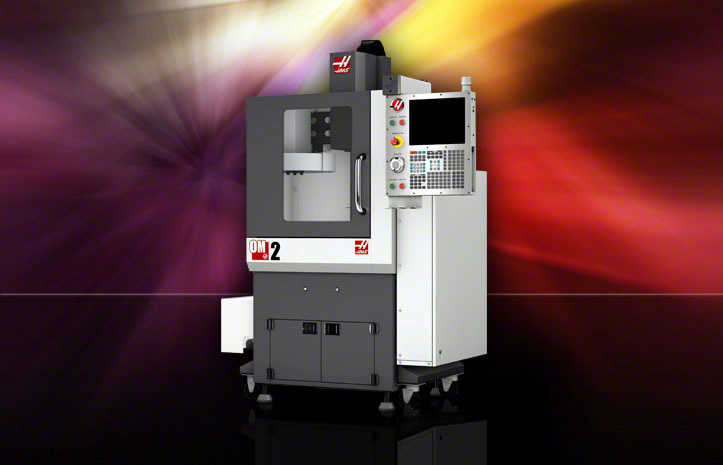

OM-2A Product Overview

Office Mill; 12" x 10" x 12" (305 x 254 x 305 mm) (xyz), ISO 20�taper, 5 hp (3.7 kW) vector drive, 30,000 rpm, 20-station automatic tool changer, coolant pump, high-speed machining, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB�port. 208-250VAC 50-60Hz, single-phase power only, with NEMA L6-20P plug.

OM-2A Dimensions OM-2A Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

OM-2A Specifications

TRAVELS	S.A.E.	METRIC
OM-2A
X Axis	12 "	305 mm
Y Axis	10 "	254 mm
Z Axis	12 "	305 mm
Spindle Nose to Table (~ max)	15.25 "	387.4 mm
Spindle Nose to Table (~ min)	3.25 "	82.6 mm
TABLE	S.A.E.	METRIC
Length	20 "	508 mm
Width	10 "	254 mm
T-Slot Width	0.438 "	11.13 mm
T-Slot Center Distance	3.375 "	85.73 mm
Max Weight on Table (evenly distributed)	150 lb	68 kg
SPINDLE	S.A.E.	METRIC
Max Rating	5 hp	3.7 kW
Max Speed	30000 rpm	30000 rpm
Max Torque	5 ft-lb @ 3000 rpm	6.8 Nm @ 3000 rpm
Drive System	Direct Speed Belt Drive	Direct Speed Belt Drive
Taper	ISO/20	ISO/20
Cooling	Air and coolant recirculation	Air and coolant recirculation
SPINDLE (OPT)	S.A.E.	METRIC
Max Rating	5 hp	3.7 kW
Max Speed	50000 rpm	50000 rpm
Max Torque	3.7 ft-lb @ 3700 rpm	5 Nm @ 3700 rpm
Taper	ISO 20	ISO 20
FEEDRATES	S.A.E.	METRIC
Rapids on X	757 in/min	19.2 m/min
Rapids on Y	757 in/min	19.2 m/min
Rapids on Z	757 in/min	19.2 m/min
Max Cutting	500 in/min	12.7 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	1149 lb	5111 N
Max Thrust Y	1149 lb	5111 N
Max Thrust Z	1149 lb	5111 N
TOOL CHANGER	S.A.E.	METRIC
Type	Carousel	Carousel
Capacity	20	20
Max Tool Diameter (full)	2.3 "	58 mm
Max Tool Weight	5 lb	2.3 kg
Tool-to-Tool (avg)	3.2 sec	3.2 sec
GENERAL	S.A.E.	METRIC
Air Required	1 scfm, 40-70 psi	28 L/min, 2.8-4.8 bar
Coolant Capacity	13 gal	49 L
