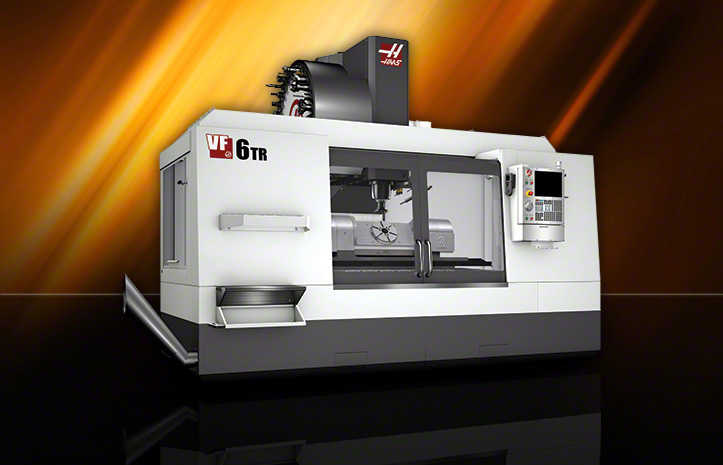

VF-6/50TR.jpg
360 Degree Views

VF-6/50TR

Starting at $207,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-6/50TR Product Overview

5-Axis Vertical Machining Center; 64" x 32" x 30" (1626 x 813 x 762 mm), with removable 12.2" (310 mm) 2-axis trunnion rotary table, 50-taper geared-head, 30 hp (22.4 kW) vector drive, 30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger, programmable coolant nozzle, 750 MB program memory, coordinate rotation & scaling, color remote jog handle, macros, high-speed machining, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

VF-6/50TR Dimensions     VF-6/50TR Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-6/50TR Specifications

print
VF-6/50TR
TRAVELS S.A.E. METRIC
X Axis 64 "  1626 mm
Y Axis 32 "  813 mm
Z Axis 30 "  762 mm
A Axis (tilt) ±120 °  ±120 °
B Axis (rot) 360 °  360 °
Spindle Nose to Platter (~ max) 20 "  508 mm
Spindle Nose to Platter (~ min) -10 "  -254 mm
Spindle Nose to Table (~ max) 35 "  889 mm
Spindle Nose to Table (~ min) 5 "  127 mm
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 7500 rpm  7500 rpm
Max Torque 450 ft-lb @ 500 rpm  610 Nm @ 500 rpm
Drive System 2-Speed Geared Head   2-Speed Geared Head
Taper CT or BT 50   CT or BT 50
FEEDRATES S.A.E. METRIC
Rapids on X 600 in/min  15.2 m/min
Rapids on Y 600 in/min  15.2 m/min
Rapids on Z 600 in/min  15.2 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 4100 lb  18238 N
Max Thrust Z 5600 lb  24910 N
TRUNNION S.A.E. METRIC
Platter Diameter 12.2 "  310 mm
Max Weight on Platter 500 lb  226.8 kg
Max Part Swing (reduced at tilt angles > ± 90°) 31 "  787.4 mm
T-Slot Width 0.625 "  15.88 mm
Number of Std T-Slots 6   6
Pilot Bore Dia 3.250 (+.0005, -0.0) "  82.55 (+ 0.013, –0.0) mm
Pilot Bore Depth Through   Through
Rapids on A 3000 °/min  3000 °/min
Rapids on B 3000 °/min  3000 °/min
Max Cutting A 2000 °/min  2000 °/min
Max Cutting B 2000 °/min  2000 °/min
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 30+1   30+1
Max Tool Diameter (adjacent empty) 10 "  254 mm
Max Tool Diameter (full) 4 "  102 mm
Max Tool Length (from gage line) 16 "  406 mm
Max Tool Weight 30 lb  13.6 kg
Tool-to-Tool (avg) 4.2 sec  4.2 sec
Chip-to-Chip (avg) 6.3 sec  6.3 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 95 gal  360 L
