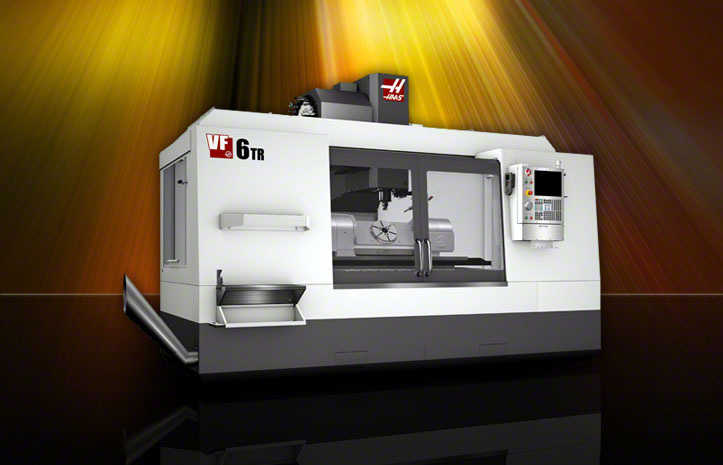

VF-6/40TR

Starting at $180,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-6/40TR Product Overview

5-Axis Vertical Machining Center, 64" x 32" x 30" (1626 x 813 x 762 mm), with removable 12.2" (310 mm) 2-axis trunnion rotary table, 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive, 24+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger, programmable coolant nozzle, 750 MB program memory, coordinate rotation & scaling, color remote jog handle, macros, high-speed machining, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

VF-6/40TR Dimensions     VF-6/40TR Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-6/40TR Specifications

print
VF-6/40TR
TRAVELS S.A.E. METRIC
X Axis 64 "  1626 mm
Y Axis 32 "  813 mm
Z Axis 30 "  762 mm
A Axis (tilt) ± 120 °  ± 120 °
B Axis (rot) 360 °  360 °
Spindle Nose to Platter (~ max) 19 "  483 mm
Spindle Nose to Platter (~ min) -11 "  -279 mm
Spindle Nose to Table (~ max) 34 "  864 mm
Spindle Nose to Table (~ min) 4 "  102 mm
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 8100 rpm  8100 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Max Torque w/opt Gearbox 250 ft-lb @ 450 rpm  339 Nm @ 450 rpm
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 600 in/min  15.2 m/min
Rapids on Y 600 in/min  15.2 m/min
Rapids on Z 600 in/min  15.2 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 3400 lb  15124 N
Max Thrust Z 5600 lb  24910 N
TRUNNION S.A.E. METRIC
Platter Diameter 12.2 "  310 mm
Max Weight on Platter 500 lb  226.8 kg
Max Part Swing (reduced at tilt angles > ± 90°) 31.0 "  787 mm
T-Slot Width 0.625 "  15.88 mm
T-Slot Quantity 6   6
Pilot Bore Dia 3.250 "  82.6 (+ 0.0127, –0.0) mm
Pilot Bore Depth Through   Through
Rapids on A 3000 °/min  3000 °/min
Rapids on B 3000 °/min  3000 °/min
Max Cutting A 2000 °/min  2000 °/min
Max Cutting B 2000 °/min  2000 °/min
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 24+1   24+1
Max Tool Diameter (adjacent empty) 6 "  152 mm
Max Tool Diameter (full) 3 "  76 mm
Max Tool Length (from gage line) 16 "  406 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.8 sec  2.8 sec
Chip-to-Chip (avg) 3.6 sec  3.6 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 95 gal  360 L
