VF-5/50

Starting at $109,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

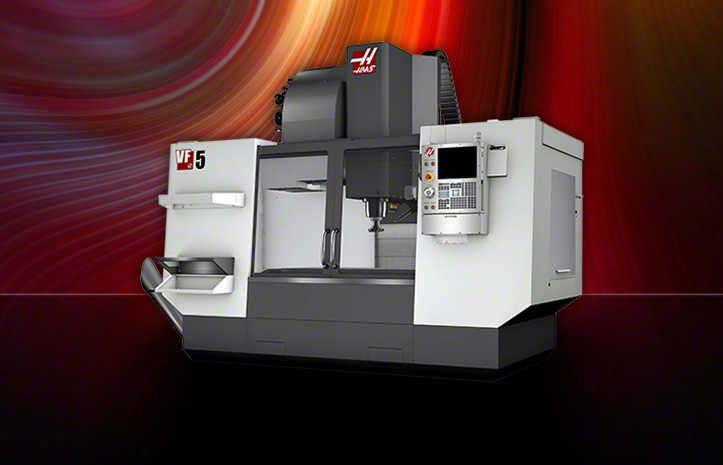

VF-5/50 Product Overview

Vertical Machining Center; 50" x 26" x 25" (1270 x 660 x 635 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm,30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chipauger, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

VF-5/50 Dimensions Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-5/50 Specifications

TRAVELS	S.A.E.	METRIC
VF-5/50
X Axis	50 "	1270 mm
Y Axis	26 "	660 mm
Z Axis	25 "	635 mm
Spindle Nose to Table (~ max)	32 "	813 mm
Spindle Nose to Table (~ min)	7 "	178 mm
TABLE	S.A.E.	METRIC
Length	52 "	1321 mm
Width	23 "	584 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	3.15 "	80.0 mm
Number of Std T-Slots	7	7
Max Weight on Table (evenly distributed)	4000 lb	1814 kg
SPINDLE	S.A.E.	METRIC
Max Rating	30 hp	22.4 kW
Max Speed	7500 rpm	7500 rpm
Max Torque	450 ft-lb @ 500 rpm	610 Nm @ 500 rpm
Drive System	2-Speed Geared Head	2-Speed Geared Head
Taper	CT or BT 50	CT or BT 50
Bearing Lubrication	Air/Oil Injection	Air/Oil Injection
Cooling	Liquid Cooled	Liquid Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	710 in/min	18.0 m/min
Rapids on Y	710 in/min	18.0 m/min
Rapids on Z	710 in/min	18.0 m/min
Max Cutting	500 in/min	12.7 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	3400 lb	15124 N
Max Thrust Y	4100 lb	18238 N
Max Thrust Z	5600 lb	24910 N
TOOL CHANGER	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	30+1	30+1
Max Tool Diameter (adjacent empty)	7 "	178 mm
Max Tool Diameter (full)	4 "	102 mm
Max Tool Length (from gage line)	16 "	406 mm
Max Tool Weight	30 lb	13.6 kg
Tool-to-Tool (avg)	4.2 sec	4.2 sec
Chip-to-Chip (avg)	6.3 sec	6.3 sec
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	95 gal	360 L
