VS-3

Starting at $379,995.00

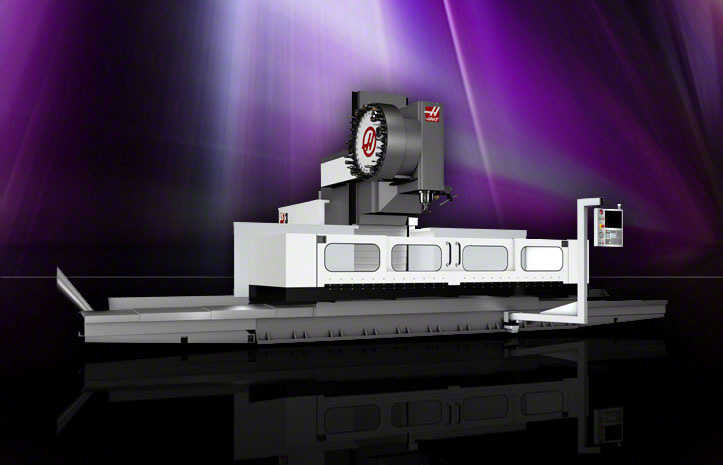

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

VS-3 Product Overview

Vertical Machining Center; 150" x 50" x 50" (3810 x 1270 x 1270�mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, color remote jog handle, 2nd home button, X-axis linear scales, 1 MB program memory, 15" color�LCD monitor, USB port, memory lock keyswitch, rigid tapping and�95-gallon (360 liter) flood coolant system. Anchor kit required�for installation.

VS-3 Dimensions VS-3 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VS-3 Specifications

TRAVELS	S.A.E.	METRIC
VS-3
X Axis	150 "	3810 mm
Y Axis	50 "	1270 mm
Z Axis	50 "	1270 mm
TABLE	S.A.E.	METRIC
Length	146 "	3708 mm
Width	40 "	1016 mm
T-Slot Width	0.866 "	22 mm
T-Slot Center Distance	7.87 "	199.9 mm
Max Weight on Table (evenly distributed)	10000 lb	4536 kg
SPINDLE	S.A.E.	METRIC
Max Rating	30 hp	22.4 kW
Max Speed	7500 rpm	7500 rpm
Max Torque	450 ft-lb @ 500 rpm	610 Nm @ 500 rpm
Drive System	2-speed Geared Head	2-speed Geared Head
Taper	CT or BT 50	CT or BT 50
Bearing Lubrication	Air/Oil Injection	Air/Oil Injection
FEEDRATES	S.A.E.	METRIC
Rapids on X	500 in/min	12.7 m/min
Rapids on Y	500 in/min	12.7 m/min
Rapids on Z	710 in/min	18.0 m/min
Max Cutting	500 in/min	12.7 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	4054 lb	18033 N
Max Thrust Y	5600 lb	24910 N
Max Thrust Z	8400 lb	37365 N
TOOL CHANGER	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	30+1	30+1
Max Tool Diameter (adjacent empty)	10 "	254 mm
Max Tool Diameter (full)	4 "	102 mm
Max Tool Length (from gage line)	16 "	406 mm
Max Tool Weight	30 lb	13.6 kg
Tool-to-Tool (avg)	4.2 sec	4.2 sec
Chip-to-Chip (avg)	6.3 sec	6.3 sec
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	95 gal	360 L
