VF-11/40

Starting at $209,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-11/40 Product Overview

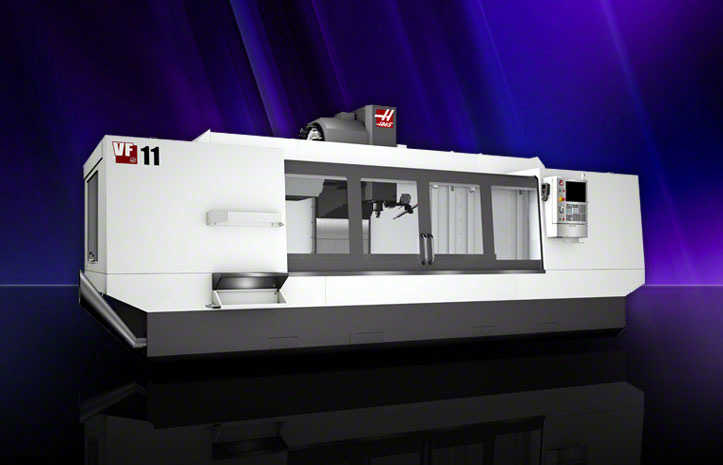

Vertical Machining Center; 120" x 40" x 30" (3048 x 1016 x 762 mm), 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive, 24+1 side-mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15" color LCD monitor, USB port, memory lock keyswitch, 1 MB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.

VF-11/40 Dimensions Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-11/40 Specifications

print
VF-11/40
TRAVELS S.A.E. METRIC
X Axis 120 "  3048 mm
Y Axis 40 "  1016 mm
Z Axis 30 "  762 mm
Spindle Nose to Table (~ max) 34 "  864 mm
Spindle Nose to Table (~ min) 4 "  102 mm
TABLE S.A.E. METRIC
Length 120 "  3048 mm
Width 28 "  711 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.92 "  125.0 mm
Number of Std T-Slots 5   5
Max Weight on Table (evenly distributed) 4000 lb  1814 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 8100 rpm  8100 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Max Torque w/opt Gearbox 250 ft-lb @ 450 rpm  339 Nm @ 450 rpm
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 360 in/min  9.1 m/min
Rapids on Y 600 in/min  15.2 m/min
Rapids on Z 600 in/min  15.2 m/min
Max Cutting 360 in/min  9.1 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 3400 lb  15124 N
Max Thrust Z 5600 lb  24910 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 24+1   24+1
Max Tool Diameter (adjacent empty) 6 "  152 mm
Max Tool Diameter (full) 3 "  76 mm
Max Tool Length (from gage line) 16 "  406 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.8 sec  2.8 sec
Chip-to-Chip (avg) 3.6 sec  3.6 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 95 gal  360 L
