GR-712

Starting at $149,995.00

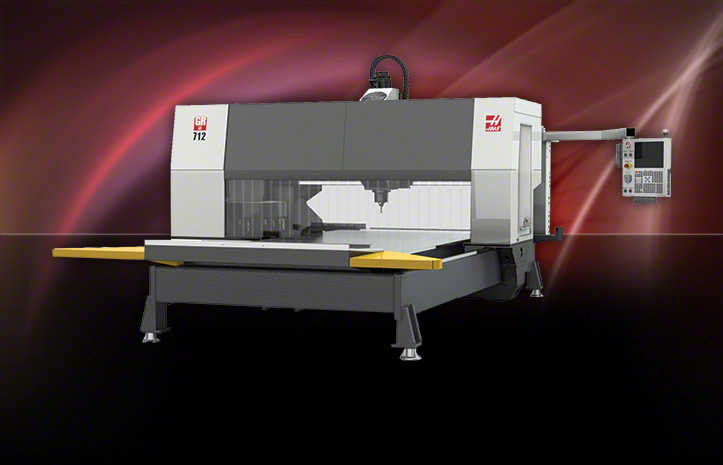

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

GR-712 Product Overview

Gantry Router; 145" x 85" x 11" (3683 x 2159 x 279 mm), 40 taper, 15 hp (11.2 kW) vector drive, 10,000 rpm, 10-pocket automatic tool changer, memory lock keyswitch, 15" color LCD monitor and�USB port.

GR-712 Dimensions GR-712 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

GR-712 Specifications

TRAVELS	S.A.E.	METRIC
GR-712
X Axis	145 "	3683 mm
Y Axis	85 "	2159 mm
Z Axis	11 "	279 mm
Spindle Nose to Table (~ max)	13.5 "	343 mm
Spindle Nose to Table (~ min)	2.5 "	64 mm
TABLE	S.A.E.	METRIC
Length	144 "	3658 mm
Width	72 "	1829 mm
Thickness	1 "	25.4 mm
Between Columns	86 "	2184 mm
Max Weight on Table (evenly distributed)	6000 lb	2722 kg
SPINDLE	S.A.E.	METRIC
Max Rating	15 hp	11.2 kW
Max Speed	10000 rpm	10000 rpm
Max Torque	17 ft-lb @ 4600 rpm	23 Nm @ 4600 rpm
Drive System	Direct Speed Belt Drive	Direct Speed Belt Drive
Taper	CT or BT 40	CT or BT 40
FEEDRATES	S.A.E.	METRIC
Rapids on X	800 in/min	20.3 m/min
Rapids on Y	2100 in/min	53.3 m/min
Rapids on Z	1100 in/min	27.9 m/min
Max Cutting	800 in/min	20.3 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2520 lb	11210 N
Max Thrust Y	1020 lb	4537 N
Max Thrust Z	2050 lb	9119 N
TOOL CHANGER	S.A.E.	METRIC
Type	Carousel	Carousel
Capacity	10	10
Max Tool Diameter (full)	3.5 "	89 mm
Max Tool Weight	12 lb	5.4 kg
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	95 gal	360 L
