CNC Lathes: Chuck Size

TL-2

Starting at $31,995.00

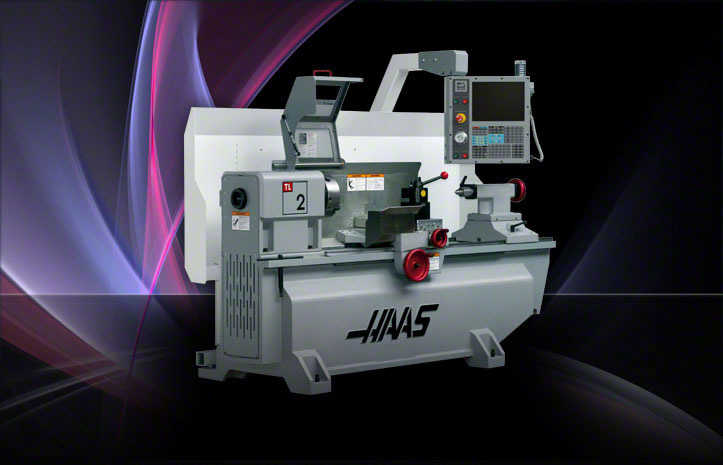

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

TL-2 Product Overview

CNC/Manual Toolroom Lathe; 16" x 48" (406 x 1219 mm) max capacity, 16" (406 mm) swing, 12 hp (8.9 kW) vector drive, 2000 rpm, A2-6 spindle, Intuitive Programming System, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port. No workholding, toolpost or toolholders included. Enclosure required for CE compliance.

TL-2 Dimensions     TL-2 Datasheet Shipping Dimensions Electrical Requirements

TL-2 Specifications

print
TL-2
SWING DIAMETER S.A.E. METRIC
Over Front Apron 16.0 "  406 mm
Over Cross Slide 11.1 "  282 mm
CAPACITIES S.A.E. METRIC
Chuck (optional) 10 "  254 mm
Max Cutting Diameter (varies with turret) 16 "  406 mm
Max Cutting Length (without workholding) 48 "  1219 mm
Between Centers 48 "  1219 mm
TRAVELS & FEEDRATES S.A.E. METRIC
X Axis 8 "  203 mm
Z Axis 48 "  1219 mm
Rapids on X 75 in/min  1.9 m/min
Rapids on Z 150 in/min  3.8 m/min
Max Thrust X 3096 lb  13772 N
Max Thrust Z 2340 lb  10409 N
SPINDLE S.A.E. METRIC
Max Rating 12 hp  8.9 kW
Max Speed 2000 rpm  2000 rpm
Max Torque 150 ft-lb @ 150  rpm  203 Nm @ 150 rpm
Spindle Nose A2-6   A2-6
Spindle Bore ø 3.00 "  76.2 mm
