ST-30

Starting at $66,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

EXPLORE MACHINE DETAIL:

ST-30 Product Overview

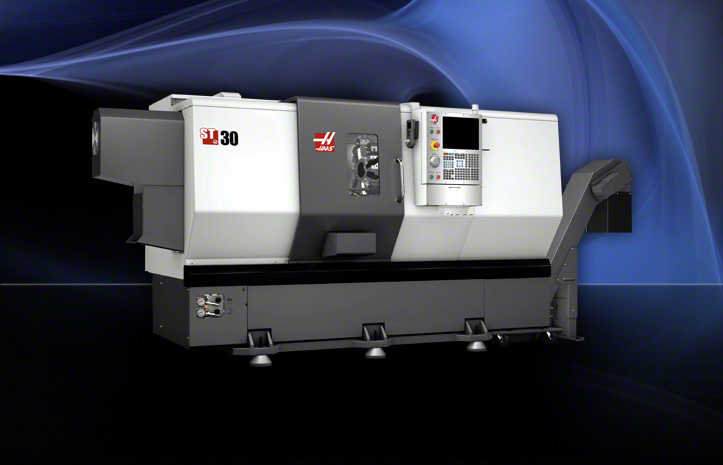

CNC Lathe; 21" x 26" (533 x 660 mm) max capacity, 3.0" (76 mm) bar, 31.75" (806 mm) swing, 30 hp (22.4 kW) vector drive, 3400 rpm, A2-6 spindle,10" (254 mm) chuck, 12-station bolt-on turret, 15" color LCD monitor, memory lock keyswitch, USB port and rigid�tapping. Standard toolholder kit included with BOT or Hybrid turret.

ST-30 Dimensions ST-30 Datasheet Shipping Dimensions Electrical Requirements

ST-30 Specifications

SWING DIAMETER	S.A.E.	METRIC
ST-30
Over Front Apron	31.75 "	806 mm
Over Cross Slide	20.75 "	527 mm
Over Tailstock	23.0 "	584 mm
CAPACITIES	S.A.E.	METRIC
Chuck Size	10.0 "	254 mm
Max Cutting Diameter (varies with turret)	21.0 "	533 mm
Max Cutting Length (without workholding)	26.0 "	660 mm
Bar Capacity	3.0 "	76 mm
Between Centers	30 "	762 mm
TRAVELS & FEEDRATES	S.A.E.	METRIC
X Axis	12.5 "	318 mm
Z Axis	26 "	660 mm
Rapids on X	945 in/min	24.0 m/min
Rapids on Z	945 in/min	24.0 m/min
Max Thrust X	4100 lb	18238 N
Max Thrust Z	5100 lb	22686 N
SPINDLE	S.A.E.	METRIC
Max Rating	30 hp	22.4 kW
Max Speed	3400 rpm	3400 rpm
Max Torque	300 ft-lb @ 500 rpm	407 Nm @ 500 rpm
Spindle Nose	A2-6	A2-6
Max Torque w/opt Gearbox	1000 ft-lb @ 150 rpm	1356 Nm @ 150 rpm
Spindle Bore �	3.50 "	88.9 mm
TURRET	S.A.E.	METRIC
Number of Tools	12 Stations	12 Stations
OD vs ID Tools	Any Combination (will vary with turret style)	Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret )	4.0 "	102 mm
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	55 gal	208 L
