VM-6

Starting at $135,995.00

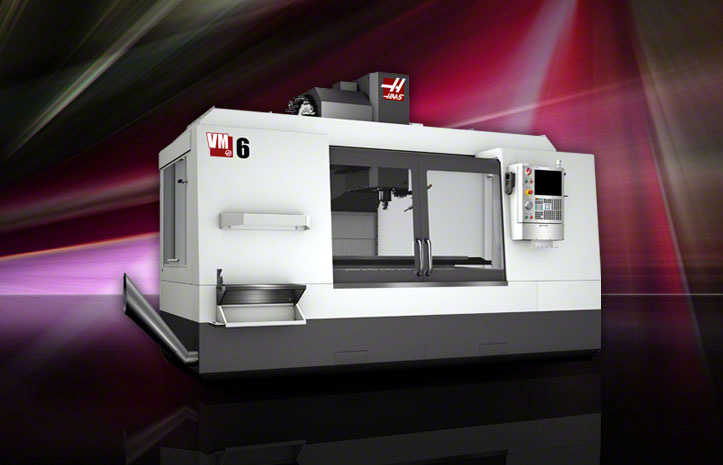

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VM-6 Product Overview

Vertical Mold Making Machine; 64" x 32" x 30" (1626 x 813 x 762 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, 24+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger, remote jog handle, automatic air gun, high-speed machining, Ethernet interface, macros, coordinate rotation & scaling, programmable coolant nozzle, power failure detection module, 750 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

VM-6 Dimensions     VM-6 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VM-6 Specifications

print
VM-6
TRAVELS S.A.E. METRIC
X Axis 64 "  1626 mm
Y Axis 32 "  813 mm
Z Axis 30 "  762 mm
Spindle Nose to Table (~ max) 34 "  864 mm
Spindle Nose to Table (~ min) 4 "  102 mm
TABLE S.A.E. METRIC
Length 64 "  1626 mm
Width 28 "  711 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.92" X,Y   125 mm X, 175 mm Y
Number of Std T-Slots 5 in X , 12 in Y   5 in X , 9 in Y
Max Weight on Table (evenly distributed) 4000 lb  1814 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 12000 rpm  12000 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 600 in/min  15.2 m/min
Rapids on Y 600 in/min  15.2 m/min
Rapids on Z 600 in/min  15.2 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 4100 lb  18238 N
Max Thrust Z 5600 lb  24910 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 24+1   24+1
Max Tool Diameter (adjacent empty) 6 "  152 mm
Max Tool Diameter (full) 3 "  76 mm
Max Tool Length (from gage line) 16 "  406 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.8 sec  2.8 sec
Chip-to-Chip (avg) 3.6 sec  3.6 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 95 gal  360 L
