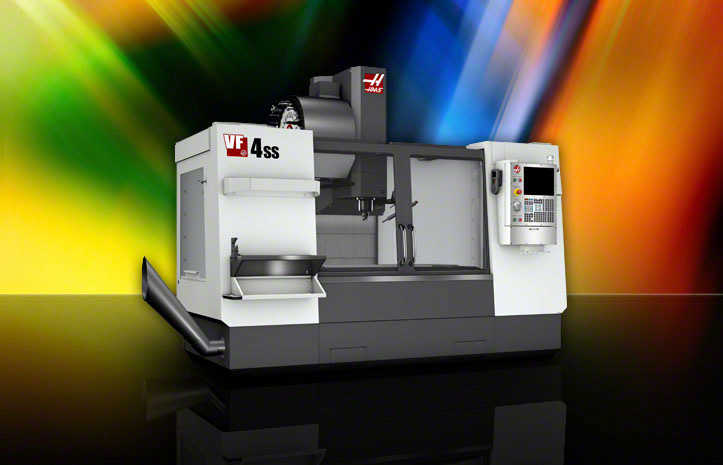

VF-4SS

Starting at $81,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-4SS Product Overview

Super-Speed Vertical Machining Center; 50" x 20" x 25" (1270 x 508 x 635 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, high-speed 24+1 side-mount tool changer, 1400 ipm (35.6 m/min) rapids, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

VF-4SS Dimensions VF-4SS Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-4SS Specifications

TRAVELS	S.A.E.	METRIC
VF-4SS
X Axis	50 "	1270 mm
Y Axis	20 "	508 mm
Z Axis	25 "	635 mm
Spindle Nose to Table (~ max)	29 "	737 mm
Spindle Nose to Table (~ min)	4 "	102 mm
TABLE	S.A.E.	METRIC
Length	52 "	1321 mm
Width	18 "	457 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	3.15 "	80.0 mm
Number of Std T-Slots	5	5
Max Weight on Table (evenly distributed)	1750 lb	794 kg
SPINDLE	S.A.E.	METRIC
Max Rating	30 hp	22.4 kW
Max Speed	12000 rpm	12000 rpm
Max Torque	90 ft-lb @ 2000 rpm	122 Nm @ 2000 rpm
Drive System	Inline Direct-Drive	Inline Direct-Drive
Taper	CT or BT 40	CT or BT 40
Bearing Lubrication	Air/Oil Injection	Air/Oil Injection
Cooling	Liquid Cooled	Liquid Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	1400 in/min	35.6 m/min
Rapids on Y	1400 in/min	35.6 m/min
Rapids on Z	1400 in/min	35.6 m/min
Max Cutting	833 in/min	21.2 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	3085 lb	13723 N
Max Thrust Y	3085 lb	13723 N
Max Thrust Z	3925 lb	17459 N
TOOL CHANGER	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	24+1	24+1
Max Tool Diameter (adjacent empty)	5 "	127 mm
Max Tool Diameter (full)	3 "	76 mm
Max Tool Length (from gage line)	11 "	279 mm
Max Tool Weight	12 lb	5.4 kg
Tool-to-Tool (avg)	1.6 sec	1.6 sec
Chip-to-Chip (avg)	2.2 sec	2.2 sec
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	55 gal	208 L
