VF-3SSYT

Starting at $87,995.00

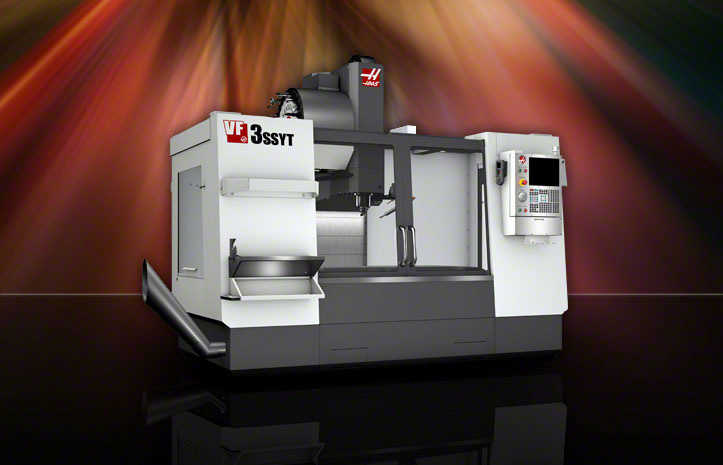

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-3SSYT Product Overview

Super-Speed Vertical Machining Center; 40" x 26" x 25" (1016 x 660 x 635 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, high-speed 24+1 side-mount tool changer, 1400 ipm (35.6 m/min) rapids, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

VF-3SSYT Dimensions Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-3SSYT Specifications

print
VF-3SSYT
TRAVELS S.A.E. METRIC
X Axis 40 "  1016 mm
Y Axis 26 "  660 mm
Z Axis 25 "  635 mm
Spindle Nose to Table (~ max) 29.5 "  749 mm
Spindle Nose to Table (~ min) 4.5 "  114 mm
TABLE S.A.E. METRIC
Length 54 "  1372 mm
Width 25 "  635 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 3.15 "  80.0 mm
Number of Std T-Slots 5   5
Max Weight on Table (evenly distributed) 1750 lb  794 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 12000 rpm  12000 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
Taper CT or BT 40   CT or BT 40
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 1400 in/min  35.6 m/min
Rapids on Y 1400 in/min  35.6 m/min
Rapids on Z 1400 in/min  35.6 m/min
Max Cutting 833 in/min  21.2 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3085 lb  13723 N
Max Thrust Y 3085 lb  13723 N
Max Thrust Z 3923 lb  17450 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 24+1   24+1
Max Tool Diameter (full) 3.0 "  76 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 1.6 sec  1.6 sec
Chip-to-Chip (avg) 2.2 sec  2.2 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
