TM-3

Starting at $39,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

TM-3 Product Overview

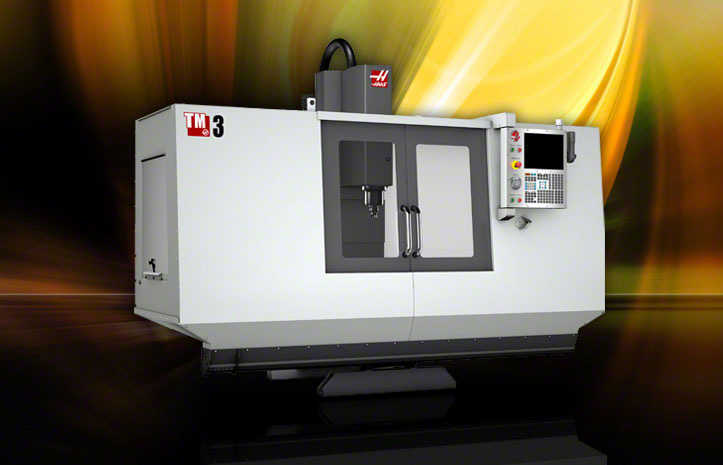

Toolroom Mill; 40" x 20" x 16" (1016 x 508 x 406 mm), 40 taper,�7.5 hp (5.6 kW) vector drive, 4000 rpm, full enclosure, Intuitive Programming System, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port.

TM-3 Dimensions TM-3 Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

TM-3 Specifications

TRAVELS	S.A.E.	METRIC
TM-3
X Axis	40 "	1016 mm
Y Axis	20 "	508 mm
Z Axis	16 "	406 mm
Spindle Nose to Table (~ max)	20 "	508 mm
Spindle Nose to Table (~ min)	4 "	102 mm
TABLE	S.A.E.	METRIC
Length	57.75 "	1467 mm
Width	14.5 "	368 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	4.92 "	125 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	1000 lb	454 kg
SPINDLE	S.A.E.	METRIC
Max Rating	7.5 hp	5.6 kW
Max Speed	4000 rpm	4000 rpm
Max Torque	33 ft-lb @ 1200 rpm	45 Nm @ 1200 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Taper	CT or BT 40	CT or BT 40
Bearing Lubrication	Grease packed	Grease packed
Cooling	Air Cooled	Air Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	200 in/min	5.1 m/min
Rapids on Y	200 in/min	5.1 m/min
Rapids on Z	200 in/min	5.1 m/min
Max Cutting	200 in/min	5.1 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2000 lb	8896 N
Max Thrust Y	2000 lb	8896 N
Max Thrust Z	2000 lb	8896 N
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
