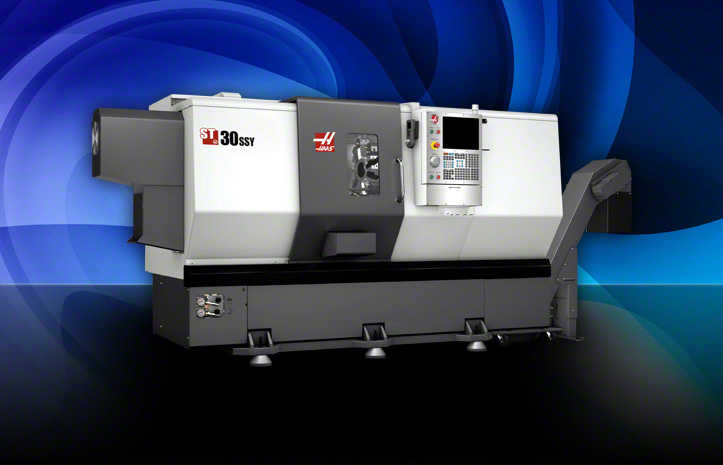

ST-30SSY

Starting at $104,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

ST-30SSY Product Overview

CNC Lathe with Y Axis; 16" x 23" (406 x 584 mm) max capacity, 31.75" (806 mm) swing, 2.00" (50.8 mm) Y-axis travel, 30 hp (22.4 kW) vector drive, 4500 rpm, A2-6 spindle, 10" (254 mm) chuck,24-station hybrid turret (12 VDI/12 BOT), high-torque live tooling w/C axis, 15" color LCD monitor, memory lock keyswitch, spindle orientation, USB port and rigid tapping. Includes standard toolholder kit.

ST-30SSY Dimensions     ST-30SSY Datasheet Shipping Dimensions Electrical Requirements

ST-30SSY Specifications

print
ST-30SSY
SWING DIAMETER S.A.E. METRIC
Over Front Apron 31.75 "  806 mm
Over Cross Slide 20.75 "  527 mm
Over Tailstock 23.0 "  584 mm
CAPACITIES S.A.E. METRIC
Chuck Size 10.0 "  254 mm
Max Cutting Diameter (varies with turret) 16.0 "  406 mm
Max Cutting Length (without workholding) 23 "  584 mm
Bar Capacity 3.0 "  76 mm
TRAVELS & FEEDRATES S.A.E. METRIC
X Axis 12.5 "  318 mm
Y Axis 2.0 "  51 mm
Z Axis 23 "  584 mm
Rapids on X 472 in/min  12 m/min
Rapids on Y 472 in/min  12 m/min
Rapids on Z 1200 in/min  30.5 m/min
Max Thrust X 4100 lb  18238 N
Max Thrust Y 2300 lb  10231 N
Max Thrust Z 4050 lb  18015 N
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22 kW
Max Speed 4500 rpm  4500 rpm
Max Torque 275 ft-lb @ 600 rpm  373 Nm @ 600 rpm
Spindle Nose A2-6   A2-6
Spindle Bore 3.50 "  88.9 mm
MAIN SPINDLE C AXIS S.A.E. METRIC
Max Rating 5 hp  3.7 kW
Positioning () 0.01   0.01
Brake Clamp Force 1000 lb  4448 N
Brake Diameter 14.4 "  366 mm
Control Type Interpolated Motion & Positioning   Interpolated Motion & Positioning
TURRET S.A.E. METRIC
Number of Tools 24 Stations   24 Stations
OD vs ID Tools Hybrid 12 BOT/12 VDI   Hybrid 12 BOT/12 VDI
Boring Bar Rear Clearance (from back of turret ) 4.0 "  102 mm
LIVE TOOLING S.A.E. METRIC
Max Speed 6000 rpm  6000 rpm
Tooling VDI40   VDI40
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
