CNC Lathes: Chuck Size
360 Degree Views

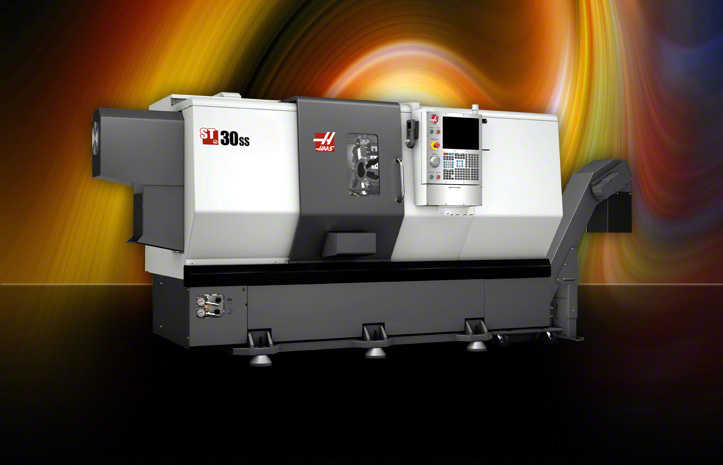

ST-30SS

Starting at $71,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

Build-A-Quote

EXPLORE MACHINE DETAIL:

ST-30SS Product Overview

CNC Lathe; 16" x 26" (406 x 660 mm) max capacity, 31.75" (806 mm) swing, 30 hp (22.4 kW) vector drive, 4500 rpm, A2-6 spindle, 10" (254 mm) chuck, 24-station hybrid turret (12 VDI/12 BOT), 15" color LCD monitor, memory lock keyswitch, USB port and rigid tapping. Standard toolholder kit included.

ST-30SS Dimensions     ST-30SS Datasheet Shipping Dimensions Electrical Requirements

ST-30SS Specifications

print
ST-30SS
SWING DIAMETER S.A.E. METRIC
Over Front Apron 31.75 "  806 mm
Over Cross Slide 20.75 "  527 mm
Over Tailstock 23.0 "  584 mm
CAPACITIES S.A.E. METRIC
Chuck Size 10.0 "  254 mm
Max Cutting Diameter (varies with turret) 16.0 "  406 mm
Max Cutting Length (without workholding) 26.0 "  660 mm
Bar Capacity 3.0 "  76 mm
TRAVELS & FEEDRATES S.A.E. METRIC
X Axis 12.5 "  318 mm
Z Axis 26 "  660 mm
Rapids on X 945 in/min  24.0 m/min
Rapids on Z 1200 in/min  30.5 m/min
Max Thrust X 4100 lb  18238 N
Max Thrust Z 4050 lb  18015 N
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22 kW
Max Speed 4500 rpm  4500 rpm
Max Torque 275 ft-lb @ 600 rpm  373 Nm @ 600 rpm
Spindle Nose A2-6   A2-6
Spindle Bore ø 3.50 "  88.9 mm
TURRET S.A.E. METRIC
Number of Tools 24 Stations   24 Stations
OD vs ID Tools Hybrid 12 BOT/12 VDI   Hybrid 12 BOT/12 VDI
Boring Bar Rear Clearance (from back of turret ) 4.0 "  102 mm
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
