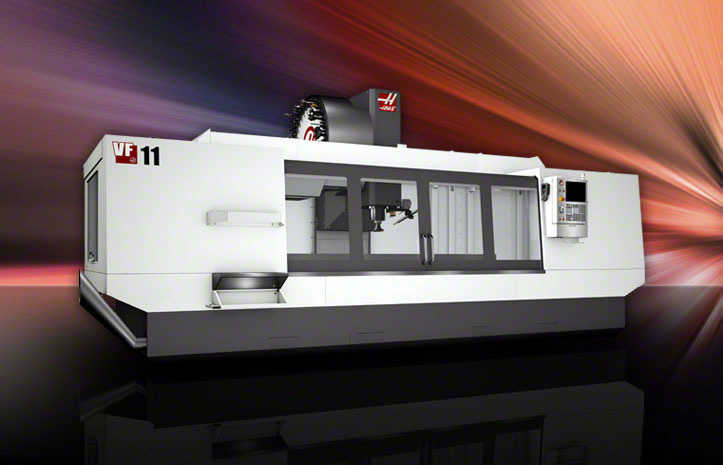

VF-11/50

Starting at $236,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

VF-11/50 Product Overview

Vertical Machining Center; 120" x 40" x 30" (3048 x 1016 x 762 mm), 50- taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side- mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15" color LCD monitor, USB port, memory lock keyswitch, 1 MB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.

VF-11/50 Dimensions Shipping Dimensions Rotary Fit Chart Electrical Requirements

VF-11/50 Specifications

print
VF-11/50
TRAVELS S.A.E. METRIC
X Axis 120 "  3048 mm
Y Axis 40 "  1016 mm
Z Axis 30 "  762 mm
Spindle Nose to Table (~ max) 35 "  889 mm
Spindle Nose to Table (~ min) 5 "  127 mm
TABLE S.A.E. METRIC
Length 120 "  3048 mm
Width 28 "  711 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.92 "  125.0 mm
Number of Std T-Slots 5   5
Max Weight on Table (evenly distributed) 4000 lb  1814 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 7500 rpm  7500 rpm
Max Torque 450 ft-lb @ 500 rpm  610 Nm @ 500 rpm
Drive System 2-Speed Geared Head   2-Speed Geared Head
Taper CT or BT 50   CT or BT 50
Bearing Lubrication Air/Oil Injection   Air/Oil Injection
Cooling Liquid Cooled   Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X 360 in/min  9.1 m/min
Rapids on Y 600 in/min  15.2 m/min
Rapids on Z 600 in/min  15.2 m/min
Max Cutting 360 in/min  9.1 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 3400 lb  15124 N
Max Thrust Y 4100 lb  18238 N
Max Thrust Z 5600 lb  24910 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 30+1   30+1
Max Tool Diameter (adjacent empty) 10 "  254 mm
Max Tool Diameter (full) 4 "  102 mm
Max Tool Length (from gage line) 16 "  406 mm
Max Tool Weight 30 lb  13.6 kg
Tool-to-Tool (avg) 4.2 sec  4.2 sec
Chip-to-Chip (avg) 6.3 sec  6.3 sec
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 95 gal  360 L
