ST-10Y

Starting at $79,995.00

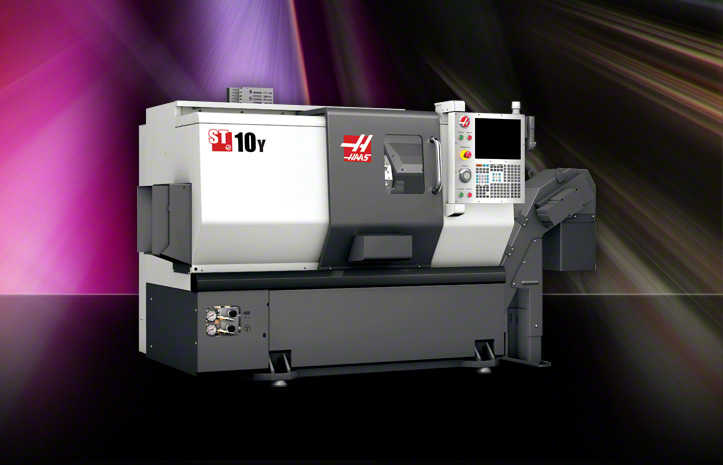

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

ST-10Y Product Overview

CNC Lathe w/Y Axis; 12" x 14" (305 x 356 mm) max capacity, 1.75" bar, 16.25" (413 mm) swing, ±2.00" (±50.8 mm) Y-axis travel, 15 hp (11.2 kW) vector drive, 6000 rpm, A2-5 spindle, 6.5" (165 mm) chuck, 12-station hybrid turret (6 VDI/6 BOT), high-torque live tooling w/C axis, 15" color LCD monitor, memory lock keyswitch, spindle orientation, USB port and rigid tapping. Standard toolholder kit included with Hybrid turret.

ST-10Y Dimensions     ST-10Y Datasheet Shipping Dimensions Electrical Requirements

ST-10Y Specifications

print
ST-10Y
SWING DIAMETER S.A.E. METRIC
Over Front Apron 25.25 "  641 mm
Over Cross Slide 16.25 "  413 mm
Over Tailstock 23.5 "  597 mm
CAPACITIES S.A.E. METRIC
Chuck Size 6.5 "  165 mm
Max Cutting Diameter (varies with turret) 12 "  305 mm
Max Cutting Length (without workholding) 14.0 "  356 mm
Bar Capacity 1.75 "  44 mm
TRAVELS & FEEDRATES S.A.E. METRIC
X Axis 7.88 "  200 mm
Y Axis ±2 "  ±51 mm
Z Axis 14 "  356 mm
Rapids on X 472 in/min  12 m/min
Rapids on Y 472 in/min  12 m/min
Rapids on Z 1200 in/min  30.5 m/min
Max Thrust X 2400 lb  10676 N
Max Thrust Y 2300 lb  10231 N
Max Thrust Z 3700 lb  16458 N
SPINDLE S.A.E. METRIC
Max Rating 15 hp  11.2 kW
Max Speed 6000 rpm  6000 rpm
Max Torque 75 ft-lb @ 1300 rpm  102 Nm @ 1300 rpm
Spindle Nose A2-5   A2-5
Spindle Bore ø 2.31 "  58.7 mm
Draw Tube Bore ø 1.81 "  46.0 mm
MAIN SPINDLE C AXIS S.A.E. METRIC
Max Rating 5 hp  3.7 kW
Positioning (±) 0.01 °  0.01 °
Brake Clamp Force 1000 lb  4448 N
Brake Diameter 14.4 "  366 mm
Control Type Interpolated Motion and Control   Interpolated Motion and Control
TURRET S.A.E. METRIC
Number of Tools 12 Stations   12 Stations
OD vs ID Tools 12 VDI   12 VDI
Boring Bar Rear Clearance (from back of turret ) 0.75 "  19.1 mm
LIVE TOOLING S.A.E. METRIC
Max Speed 6000 rpm  6000 rpm
Tooling VDI40   VDI40
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 15 gal  57 L
