DS-30SSY

Starting at $139,995.00

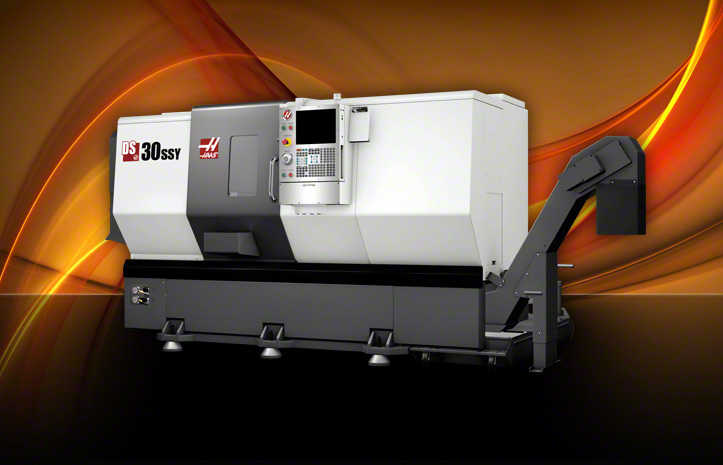

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

DS-30SSY Product Overview

Dual-Spindle CNC Lathe with Y Axis; 16" x 23" (406 x 584 mm) max capacity, 31.75" (806 mm) swing, ±2.00" (±50.8 mm) Y-axis travel. Main Spindle: 30 hp (22.4 kW) vector drive, 4800 rpm, A2-6 spindle, 8.3" (210 mm) chuck. Secondary Spindle: 20 hp (14.9 kW) vector drive, 4800 rpm, A2-5 spindle, 8.3" (210 mm) chuck. 24-station hybrid turret (12 VDI/12 BOT), high-torque live tooling w/C axis, 15" color LCD monitor, memory lock keyswitch, spindle orientation, USB port and rigid tapping. Includes standard toolholder kit.

DS-30SSY Dimensions     DS-30SSY Datasheet Shipping Dimensions Electrical Requirements

DS-30SSY Specifications

print
DS-30SSY
SWING DIAMETER S.A.E. METRIC
Over Front Apron 31.75 "  806 mm
Over Cross Slide 20.75 "  527 mm
Over Second Spindle 21.75 "  552 mm
CAPACITIES S.A.E. METRIC
Chuck Size 8.3 "  210 mm
Max Cutting Diameter (varies with turret) 16.0 "  406 mm
Max Cutting Length (without workholding) 23 "  584 mm
Bar Capacity 2.0 "  51 mm
TRAVELS & FEEDRATES S.A.E. METRIC
X Axis 12.5 "  318 mm
Y Axis ±2.00 "  ±50.8 mm
Z Axis 23 "  584 mm
Rapids on X 472 in/min  12 m/min
Rapids on Y 472 in/min  12 m/min
Rapids on Z 1200 in/min  30.5 m/min
Max Thrust X 4100 lb  18238 N
Max Thrust Y 2300 lb  10231 N
Max Thrust Z 4050 lb  18015 N
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 4800 rpm  4800 rpm
Max Torque 275 ft-lb @ 600  rpm  373 Nm @ 600 rpm
Spindle Nose A2-6   A2-6
Spindle Bore ø 3.50 "  88.9 mm
MAIN SPINDLE C AXIS S.A.E. METRIC
Max Rating 5 hp  3.7 kW
Positioning (±) 0.01 °  0.01 °
Brake Clamp Force 1000 lb  4448 N
Brake Diameter 14.4 "  366 mm
Control Type Interpolated Motion & Positioning   Interpolated Motion & Positioning
SECONDARY SPINDLE S.A.E. METRIC
Max Rating 20 hp  14.9 kW
Max Speed 4800 rpm  4800 rpm
Max Torque 110 ft-lb @ 700 rpm  149 Nm @ 700 rpm
Spindle Nose A2-5   A2-5
Chuck Size 8.3 "  210 mm
Spindle Bore ø 2.44 "  61.9 mm
SECONDARY SPINDLE POSITIONING S.A.E. METRIC
Brake Clamp Force 500 lb  2224 N
Brake Diameter 7 "  178 mm
Control Type Positioning Only   Positioning Only
TURRET S.A.E. METRIC
Number of Tools 24 Stations   24 Stations
OD vs ID Tools Hybrid 12 BOT/12 VDI   Hybrid 12 BOT/12 VDI
Boring Bar Rear Clearance (from back of turret ) 4.0 "  102 mm
LIVE TOOLING S.A.E. METRIC
Max Speed 6000 rpm  6000 rpm
Brake Clamp Force 1000 lb  4448 N
Brake Diameter 13.25 "  336.6 mm
Tooling VDI40   VDI40
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 55 gal  208 L
