TL-1

Starting at $27,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

EXPLORE MACHINE DETAIL:

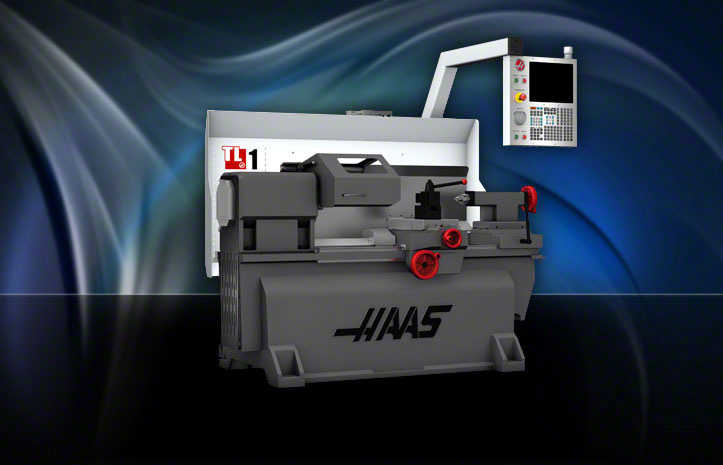

TL-1 Product Overview

CNC/Manual Toolroom Lathe; 16" x 29" (406 x 737 mm) max capacity, 16" (406 mm) swing, 7.5 hp (5.6 kW) vector drive, 2000 rpm, A2-5 spindle, Intuitive Programming System, 1 MB program memory,�memory lock keyswitch, 15" color LCD monitor and USB port. No workholding, toolpost or toolholders included. Enclosure required for CE compliance.

TL-1 Dimensions TL-1 Datasheet Shipping Dimensions Electrical Requirements

TL-1 Specifications

SWING DIAMETER	S.A.E.	METRIC
TL-1
Over Front Apron	16.0 "	406 mm
Over Cross Slide	9.5 "	241 mm
CAPACITIES	S.A.E.	METRIC
Chuck (optional)	8 "	203 mm
Max Cutting Diameter (varies with turret)	16 "	406 mm
Max Cutting Length (without workholding)	29 "	737 mm
Between Centers	29 "	737 mm
TRAVELS & FEEDRATES	S.A.E.	METRIC
X Axis	8 "	203 mm
Z Axis	29 "	737 mm
Rapids on X	75 in/min	1.9 m/min
Rapids on Z	150 in/min	3.8 m/min
Max Thrust X	3096 lb	13772 N
Max Thrust Z	1548 lb	6886 N
SPINDLE	S.A.E.	METRIC
Max Rating	7.5 hp	5.6 kW
Max Speed	2000 rpm	2000 rpm
Max Torque	100 ft-lb @ 375 rpm	136 Nm @ 375 rpm
Spindle Nose	A2-5	A2-5
Spindle Bore �	2.31 "	58.7 mm
