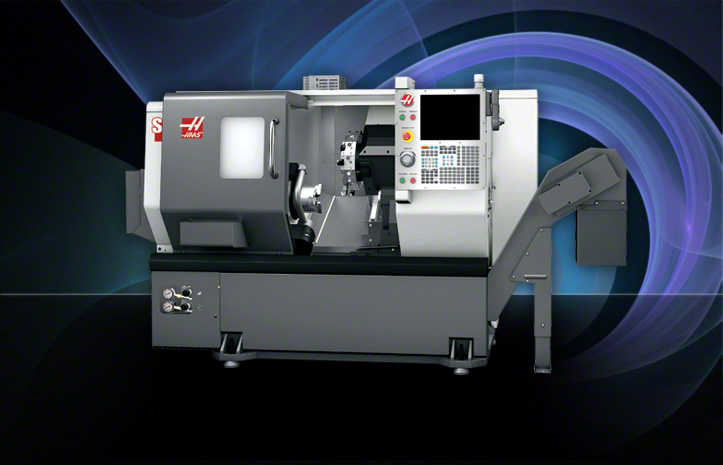

ST-10 Product Overview

CNC Lathe; 14" x 14" (356 x 356 mm) max capacity, 1.75" (44 mm)bar, 16.25" (413 mm) swing, 15 hp (11.2 kW) vector drive, 6000 rpm, A2-5 spindle, 6.5" (165 mm) chuck, 12-station bolt-on turret, 15" color LCD monitor, memory lock keyswitch, USB port and rigid tapping. Standard toolholder kit included with BOT or Hybridturret.

ST-10 Dimensions     ST-10 Datasheet Shipping Dimensions Electrical Requirements

ST-10 Specifications

print
ST-10
SWING DIAMETER S.A.E. METRIC
Over Front Apron 25.25 "  641 mm
Over Cross Slide 16.25  "  413 mm
Over Tailstock 23.50 "  597 mm
CAPACITIES S.A.E. METRIC
Chuck Size 6.5 "  165 mm
Max Cutting Diameter (varies with turret) 14.0 "  356 mm
Max Cutting Length (without workholding) 14.0 "  356 mm
Bar Capacity 1.75 "  44 mm
TRAVELS & FEEDRATES S.A.E. METRIC
X Axis 7.88 "  200.2 mm
Z Axis 14 "  356 mm
Rapids on X 1200 in/min  30.5 m/min
Rapids on Z 1200 in/min  30.5 m/min
Max Thrust X 3300 lb  14679 N
Max Thrust Z 3300 lb  14679 N
SPINDLE S.A.E. METRIC
Max Rating 15 hp  11.2 kW
Max Speed 6000 rpm  6000 rpm
Max Torque 75 ft-lb @ 1300 rpm  102 Nm @ 1300 rpm
Spindle Nose A2-5   A2-5
Spindle Bore 2.31 "  58.7 mm
TURRET S.A.E. METRIC
Number of Tools 12 Stations   12 Stations
OD vs ID Tools Any Combination (will vary with turret style)   Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret ) 0.75 "  19.1 mm
GENERAL S.A.E. METRIC
Air Required 4 scfm, 100 psi  113 L/min, 6.9 bar
Coolant Capacity 30 gal  114 L
