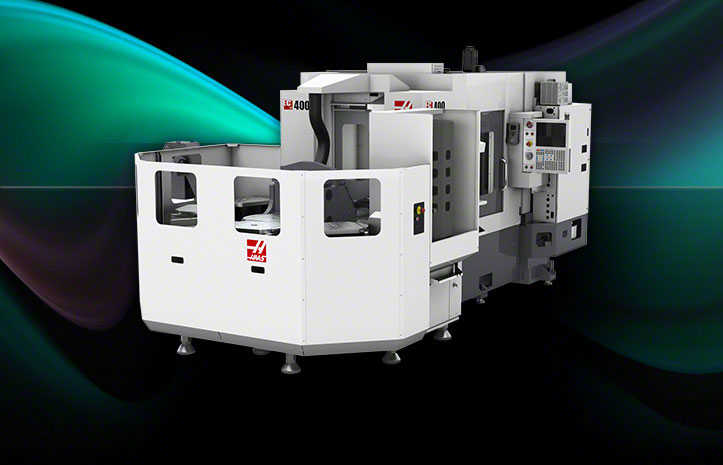

EC-400PP

Starting at $269,995.00

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

EC-400PP Product Overview

Horizontal Machining Center; 20" x 20" x 20" (508 x 508 x 508 mm), 40 taper, 400 mm twin-pallet system with 6-pallet fully integrated pallet pool, 20 hp (14.9 kW) vector drive, inline direct-drive, 8000 rpm, 70+1 side-mount tool changer, belt-type chip conveyor, 1-degree pallet indexing, color remote jog handle, 2nd home button, 300 psi through-tool coolant, shower washdown, 1MB program memory, 15" color LCD monitor, memory lock keyswitch, USB port and rigid tapping. Anchor kit required for installation.

EC-400PP Dimensions     EC-400PP Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

EC-400PP Specifications

print
EC-400PP
TRAVELS S.A.E. METRIC
X Axis 20 "  508 mm
Y Axis 20 "  508 mm
Z Axis 20 "  508 mm
A Axis Indexing Increment 1 °  1 °
SPINDLE S.A.E. METRIC
Max Rating 20 hp  14.9 kW
Max Speed 8000 rpm  8000 rpm
Max Torque 75 ft-lb @ 1400  rpm  102 Nm @ 1400 rpm
Drive System Inline Direct Drive   Inline Direct Drive
Taper CT or BT 40   CT or BT 40
Bearings ABEC Class 7   ABEC Class 7
SPINDLE (OPT) S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 12000 rpm  12000 rpm
Max Torque 90 ft-lb @ 2000 rpm  122 Nm @ 2000 rpm
Drive System Inline Direct-Drive   Inline Direct-Drive
INDEXER (STD) S.A.E. METRIC
90° Rotation Time (indexer) 2.5 sec  2.5 sec
Gear Ratio 72:1   72:1
Resolution 1 °  1 °
Indexing Accuracy ± 3 arc-sec   ± 3 arc-sec
Repeatability 1 arc-sec   1 arc-sec
Brake Torque @ 100 psi/6.9 bar 4000 lb  5423 Nm
4TH AXIS (OPT) S.A.E. METRIC
90° Rotation Time (full 4th) 3 sec  3 sec
Rotational Torque (continuous) 300 ft-lb  407 Nm
Backlash 30 arc-sec   30 arc-sec
Gear Ratio 72:1   72:1
Brake Torque 500 ft-lb  678 Nm
Min Resolution 0.001 °  0.001 °
Accuracy ± 15 arc-sec   ± 15 arc-sec
Repeatability 10 arc-sec   10 arc-sec
FEEDRATES S.A.E. METRIC
Rapids on X 1000 in/min  25.4 m/min
Rapids on Y 1000 in/min  25.4 m/min
Rapids on Z 1000 in/min  25.4 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 4600 lb  20462 N
Max Thrust Y 4600 lb  20462 N
Max Thrust Z 4600 lb  20462 N
PALLET CHANGER S.A.E. METRIC
Pallet Number 6   6
Pallet Length 15.75 "  400.0 mm
Pallet Width 15.75 "  400.0 mm
Max Pallet Load 1000 lb  454 kg
Pallet Change Time 8  sec  8 sec
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 70+1   70+1
Max Tool Diameter (adjacent empty) 6 "  152 mm
Max Tool Diameter (full) 3 "  76 mm
Max Tool Length (from gage line) 12 "  305 mm
Max Tool Weight 12 lb  5.4 kg
Tool-to-Tool (avg) 2.1  sec  2.1 sec
Chip-to-Chip (avg) 3.7  sec  3.7 sec
GENERAL S.A.E. METRIC
Air Required 9 scfm, 100 psi  255 L/min, 6.9 bar
Coolant Capacity 80 gal  303 L
Coolant Flow Rate 4 gpm  15.1 L/min
Enclosure Material 14 ga  14 ga
