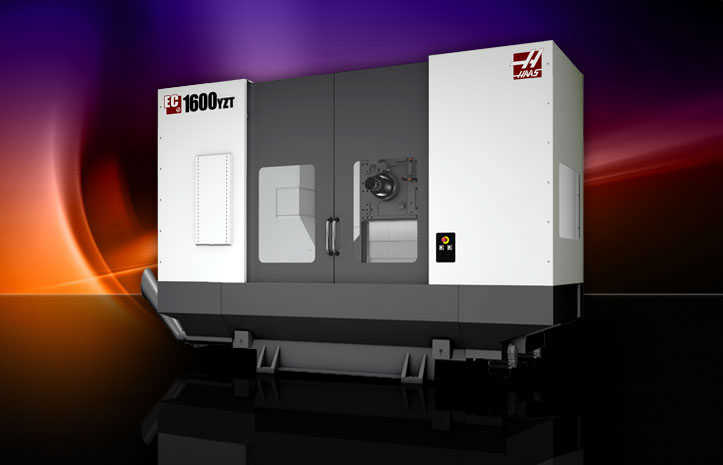

EC-1600YZT

* Machine shown with optional equipment. Actual product appearance may differ.

 Build-A-Quote

EXPLORE MACHINE DETAIL:

EC-1600YZT Product Overview

Horizontal Machining Center; 64" x 50" x 40" (1626 x 1270 x 1016 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 6000 rpm, 30+1 side-mount tool changer; includes 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping, power-failure detection module and color remote jog handle. Includes enclosure, coolant system and chip augers. Anchor kit required for installation.

EC-1600YZT Dimensions     EC-1600YZT Datasheet Shipping Dimensions Rotary Fit Chart Electrical Requirements

EC-1600YZT Specifications

print
EC-1600YZT
TRAVELS S.A.E. METRIC
X Axis 64 "  1626 mm
Y Axis 50 "  1270 mm
Z Axis 40 "  1016 mm
TABLE S.A.E. METRIC
Length 64 "  1626 mm
Width 36 "  914 mm
T-Slot Width 5/8 "  16 mm
T-Slot Center Distance 4.92 "  125.0 mm
Max Weight on Table (evenly distributed) 10000 lb  4536 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 6000  rpm  6000 rpm
Max Torque 450 ft-lb @ 500 rpm  610 Nm @ 500 rpm
Drive System 2-speed geared head   2-speed geared head
Taper CT or BT 50   CT or BT 50
SPINDLE (OPT) S.A.E. METRIC
Max Rating 30 hp  22.4 kW
Max Speed 10000 rpm  10000 rpm
Max Torque 250 ft-lb @ 600 rpm  339 Nm @ 600 rpm
Drive System 2-speed geared head   2-speed geared head
4TH AXIS (OPT) S.A.E. METRIC
Max Rating 5.0 hp  3.7 kW
Table 64" x 32"   1626 x 813 mm
Platter Diameter 30 "  762 mm
Max Weight on Platter 10000 lb  4536 kg
Rotational Torque (continuous) 2000 ft-lb  2712 Nm
Backlash 30 arc-sec   30 arc-sec
Gear Ratio 500:1   500:1
Brake Torque 4000 ft-lb  5423 Nm
Min Resolution 0.001 °  0.001 °
Indexing Accuracy ± 30 arc-sec   ± 30 arc-sec
Repeatability 15 arc-sec   15 arc-sec
FEEDRATES S.A.E. METRIC
Rapids on X 540 in/min  13.7 m/min
Rapids on Y 540 in/min  13.7 m/min
Rapids on Z 540 in/min  13.7 m/min
Max Cutting 500 in/min  12.7 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 5600 lb  24910 N
Max Thrust Y 5600 lb  24910 N
Max Thrust Z 7500 lb  33362 N
TOOL CHANGER S.A.E. METRIC
Type SMTC   SMTC
Capacity 30+1   30+1
Max Tool Diameter (full) 4 "  102 mm
Max Tool Length (from gage line) 20 "  508 mm
Max Tool Weight 30 lb  13.6 kg
Tool-to-Tool (avg) 10.3 sec  10.3 sec
Chip-to-Chip (avg) 12.6 sec  12.6 sec
GENERAL S.A.E. METRIC
Air Required 9 scfm, 100 psi  225 L/min, 6.9 bar
Coolant Capacity 95 gal  360 L
