CNC Lathes Bar Feeders

print

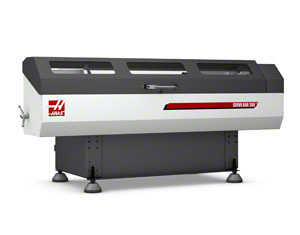

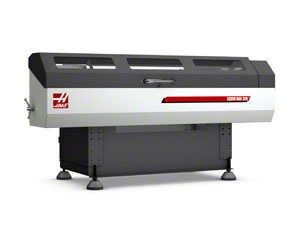

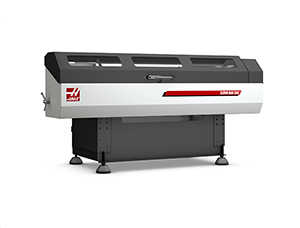

Servo Bar 300 Features:

• Wide capacity range up to 3 ⅛" (79 mm)
• Precision servo ballscrew drive system
• Simple setup
• Easy interface to Haas CNC control
• Accepts random length bars
• Automatic bar length measurement
• Liner storage tray

Specifications:

• Capacity: ⅜" to 3 ⅛" dia., up to 60" length *
• Accuracy of ±0.005" feed length without deadstop
• Tray capacity: 1" dia. bars x 30 pcs.
• Weight: 900 lb

* Capacity determined by lathe model.

Additional specifications   Bar feeder dimensions

It runs directly from the Haas control, making it the only "smart" bar feeder on the market. Unique features make setup and operation simple, like a large access door for spindle liner change-out, and a single adjustment for setting bar diameter. All bar feed parameters are set at the lathe control.
